A22005-001

Active

Omnetics

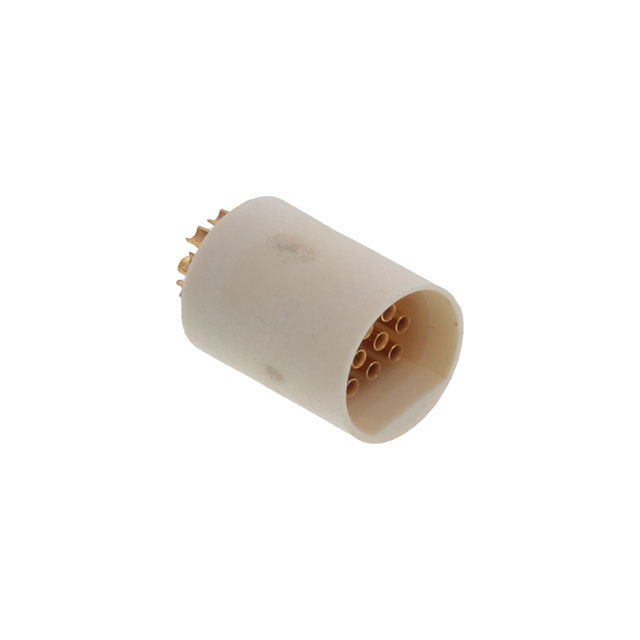

CONN RCPT FMALE 12P SOLDER CUP

Search across all available documentation for this part.

Active

Omnetics

CONN RCPT FMALE 12P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A22005-001

Color	Natural
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shielding	Unshielded

Part	Orientation	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Current Rating (Amps)	Number of Positions	Fastening Type	Shielding	Insert Material	Mounting Type	Contact Finish - Mating	Connector Type
Omnetics A22005-001	Keyed	Liquid Crystal Polymer (LCP)	1.27 µm	50 µin	Plastic	-55 °C	125 °C	Copper Alloy	Natural	3 A	12	Push-Pull	Unshielded	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Gold	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
