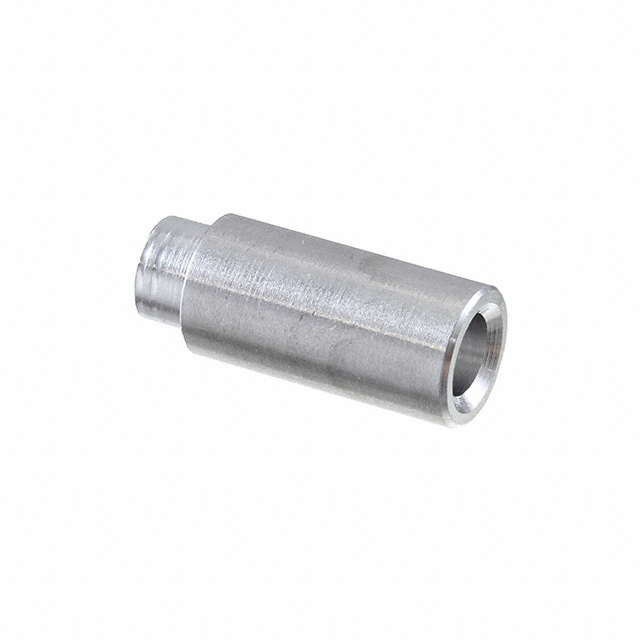

1537-B-6-AL-7
ActiveRAF Electronic Hardware
1/4 RD X 1/2 X .140 ID
Deep-Dive with AI
Search across all available documentation for this part.
1537-B-6-AL-7
ActiveRAF Electronic Hardware
1/4 RD X 1/2 X .140 ID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1537-B-6-AL-7 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Color | Clear |
| Diameter - Inside [diameter] | 0.14 in |
| Diameter - Inside [diameter] | 3.56 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall [x] | 15.37 mm |
| Length - Overall [x] | 0.605 " |
| Material | Aluminum |
| Plating | Iridite |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.57 | |
| 5 | $ 2.14 | |||
| 10 | $ 1.93 | |||
| 25 | $ 1.71 | |||
| 50 | $ 1.54 | |||
| 100 | $ 1.50 | |||
| 250 | $ 1.46 | |||
| 500 | $ 1.41 | |||
Description
General part information
1537-B Series
Round Spacer Unthreaded Aluminum 0.500" (12.70mm) 1/2" Clear
