Technical Specifications
Parameters and characteristics for this part
| Specification | SS3020HE_R1_00001 |
|---|---|
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 160 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |

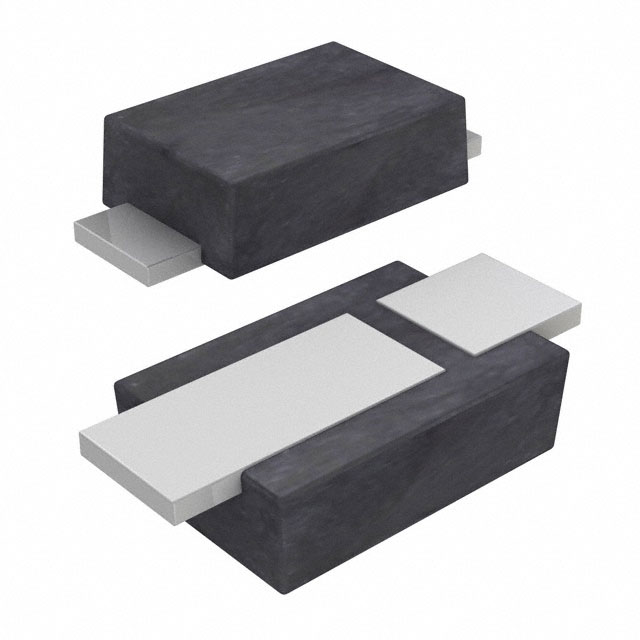

| Package / Case | SOD-123H |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-123HE |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 520 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.08 | |||
| 21000 | $ 0.08 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.07 | |||
| 150000 | $ 0.07 | |||
Description
General part information
SS3020 Series
Diode 20 V 3A Surface Mount SOD-123HE
