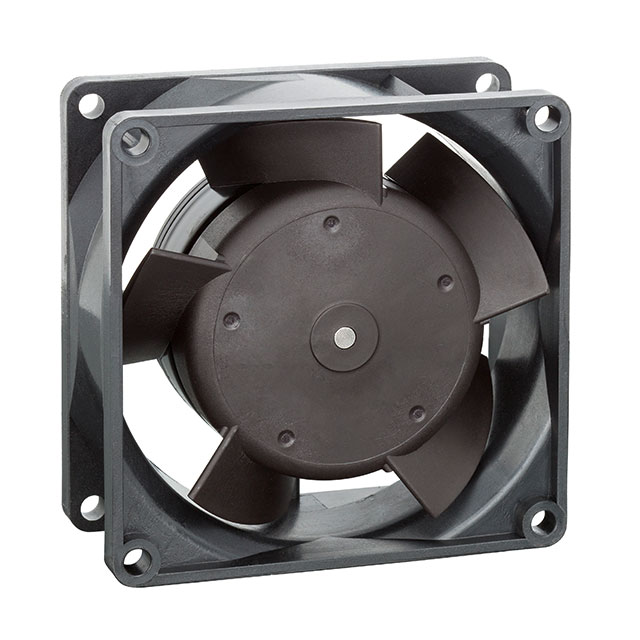

8312HL-156

Active

ebm-papst Inc.

FAN AXIAL 80X32MM 12VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 80X32MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	8312HL-156

Air Flow	39.5 CFM
Air Flow	1.11 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	62500 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	43 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	4 W
RPM	4200 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	100 Pa
Static Pressure	0.401 in H2O
Termination	2 Position Rectangular Connector
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	6 VDC
Weight	170.1 g
Weight	0.375 lb
Width [y]	32 mm

Part	Termination	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Fan Type	Lifetime @ Temp.	Material - Blade	Approval Agency	Width [y]	Material - Frame	Bearing Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage - Rated	Noise	RPM	Power (Watts)	Weight	Weight	Static Pressure	Static Pressure
ebm-papst Inc. 8312HL	2 Wire Leads	80 mm	80 mm	15 V	6 VDC	39.4 CFM	1.1 m³/min	Tubeaxial	62500 Hrs	Fiberglass Reinforced Nylon Polyamide (PA)	CE CSA UL VDE	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	-20 C	-20 °C	75 ░C	75 °C	12 VDC	43 dB	4200 RPM	4 W	170.1 g	0.375 lb
ebm-papst Inc. 8312HL-156	2 Position Rectangular Connector	80 mm	80 mm	15 V	6 VDC	39.5 CFM	1.11 m³/min	Tubeaxial	62500 Hrs	Plastic	CE CSA UL VDE	32 mm	Plastic	Ball	-20 C	-20 °C	75 ░C	75 °C	12 VDC	43 dB	4200 RPM	4 W	170.1 g	0.375 lb	100 Pa	0.401 in H2O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 39.5 CFM (1.11m³/min) 2 Position Rectangular Connector
