SH275-1/8

Active

Daburn Electronics

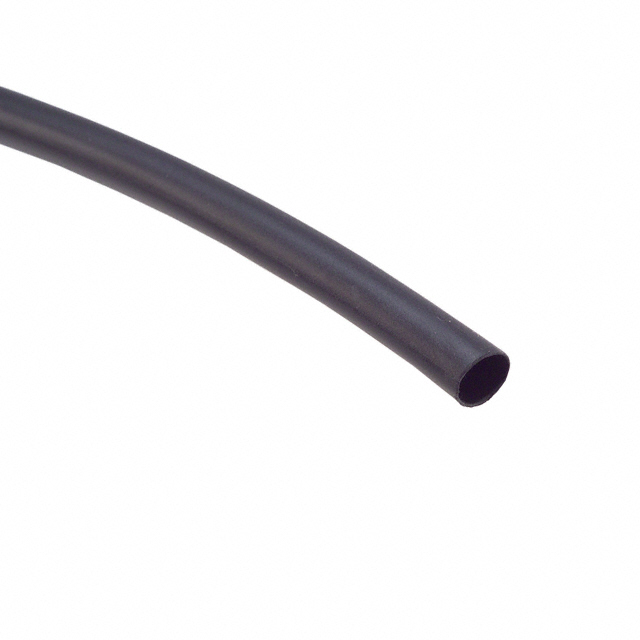

HEATSHRINK BLACK 1/8IN X 25FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SH275-1/8

Active

Daburn Electronics

HEATSHRINK BLACK 1/8IN X 25FT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SH275-1/8

Color	Black
Features	Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	1.57 mm
Inner Diameter - Recovered [diameter]	0.062 in
Inner Diameter - Supplied [diameter]	3.18 mm
Inner Diameter - Supplied [diameter]	0.125 "
Length	Enter Number of Feet in Order Quantity
Length	7.6 m, 15.2 m
Length	25 ft, 50 ft
Length [x]	61 m, 30.5 m
Length [x]	200 ft, 100 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.02 in
Recovered Wall Thickness	0.51 mm
Shelf Life	60 Months
Shrink Temperature	90 °C
Shrinkage Ratio	2 to 1
Spool Size	500 '
Spool Size	152.4 m
Type	Tubing, Flexible

SH275 Series

Part	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Length	Length	Type	Shelf Life	Spool Size	Spool Size	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Features	Shrink Temperature	Material	Color	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered	Length [x]
Daburn Electronics SH275-3/32	2 to 1	1.17 mm	0.046 in	135 °C	-55 °C	Enter Number of Feet in Order Quantity	0.062 ' 0.167 ' 50 ft	15.2 m 19.05 mm 50.8 mm 152.4 mm	0.75 " 2 " 6 "	Tubing Flexible	60 Months	500 '	152.4 m	30.5 m	100 ft	0.02 in	0.51 mm	Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black	0.5 '	0.093 in	2.36 mm
Daburn Electronics SH275-3/4-100	2 to 1	9.53 mm	0.375 in	135 °C	-55 °C	Enter Number of Feet in Order Quantity	0.062 ' 0.083 ft 0.125 ' 0.167 ' 0.25 ft 5 ' 25 ft 50 ft	1.52 m 7.6 m 15.2 m 19.05 mm 25.4 mm 38.1 mm 50.8 mm 76.2 mm	0.75 " 1 in 1.5 " 2 " 3 "	Tubing Flexible	60 Months						0.76 mm	Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black				0.03 "
Daburn Electronics SH275-1/4	2 to 1		0.125 in	135 °C	-55 °C		5 ' 25 ft 50 ft	1.52 m 7.6 m 15.2 m		Tubing Flexible	60 Months							Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black		6.35 mm			0.025 "	0.64 mm	0.25 in	3.18 mm
Daburn Electronics SH275-3	2 to 1	38.1 mm	1.5 in	135 °C	-55 °C					Tubing Flexible	60 Months			30.5 m	100 ft	0.05 in	1.27 mm	Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black		76.2 mm					3 in
Daburn Electronics SH275-1/8	2 to 1	1.57 mm	0.062 in	135 °C	-55 °C	Enter Number of Feet in Order Quantity	25 ft 50 ft	7.6 m 15.2 m		Tubing Flexible	60 Months	500 '	152.4 m	30.5 m 61 m	100 ft 200 ft	0.02 in	0.51 mm	Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black		3.18 mm					0.125 "
Daburn Electronics SH275-4	2 to 1	50.8 mm	2 in	135 °C	-55 °C		50 ft	15.2 m		Tubing Flexible	60 Months					0.055 in	1.4 mm	Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black		101.6 mm					4 "
Daburn Electronics SH275-1/16	2 to 1	0.79 mm	0.031 in	135 °C	-55 °C	Enter Number of Feet in Order Quantity	0.062 ' 0.125 ' 0.167 ' 50 ft	15.2 m 19.05 mm 38.1 mm 50.8 mm 152.4 mm	0.75 " 1.5 " 2 " 6 "	Tubing Flexible	60 Months	500 '	152.4 m			0.017 in	0.43 mm	Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black	0.5 '	1.6 mm					0.063 in
Daburn Electronics SH275-1	2 to 1	12.7 mm	0.5 in	135 °C	-55 °C	Enter Number of Feet in Order Quantity	0.062 ' 0.167 ' 0.25 ft 5 ' 25 ft	1.52 m 7.6 m 19.05 mm 50.8 mm 76.2 mm 152.4 mm	0.75 " 2 " 3 " 6 "	Tubing Flexible	60 Months			30.5 m 101.6 mm	0.333 ft 100 ft	0.035 in	0.89 mm	Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black	0.5 '	25.4 mm					1 in		4 "
Daburn Electronics SH275-3/8	2 to 1	4.75 mm	0.187 in	135 °C	-55 °C	Enter Number of Feet in Order Quantity	0.062 ' 0.083 ft 0.125 ' 0.167 ' 0.25 ft 5 ' 25 ft	1.52 m 7.6 m 19.05 mm 25.4 mm 38.1 mm 50.8 mm 76.2 mm	0.75 " 1 in 1.5 " 2 " 3 "	Tubing Flexible	60 Months	200 '	61 m	30.5 m 61 m	100 ft 200 ft			Abrasion Resistant Flame Retardant	90 °C	Polyolefin (PO) Irradiated	Black		9.53 mm			0.025 "	0.64 mm	0.375 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.41
		1	$ 44.77
		1	$ 22.39
		1	$ 12.96
		5	$ 70.69
		5	$ 37.70
		5	$ 12.37
		5	$ 18.85
		10	$ 65.98
		10	$ 9.43
		10	$ 34.17
		10	$ 17.08
		25	$ 31.81
		25	$ 15.91
		25	$ 62.68
		25	$ 8.84
		50	$ 30.63
		50	$ 15.32
		50	$ 8.25
		50	$ 61.27
		100	$ 59.85
		100	$ 14.96
		100	$ 29.93
		100	$ 7.84
	Digi-Spool®, Continuous Spool	1	$ 280.20
		5	$ 270.20
		10	$ 266.19
		25	$ 260.19

Description

General part information

SH275 Series

Heat Shrink Tubing, Flexible 0.125" (3.18mm) 2 to 1 Black 25.0' (7.6m)
