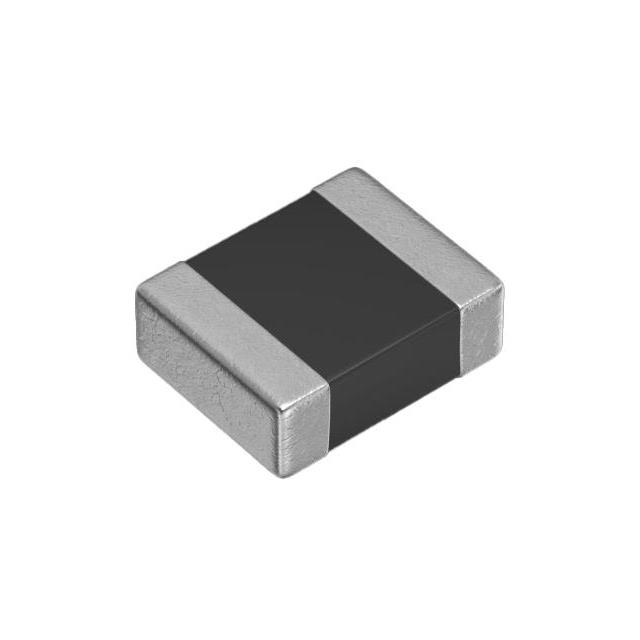

MPZ2520SPH070AT000
ActiveEPCOS - TDK Electronics
FERRITE BEAD, 7OHM, 12A, 1008 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPZ2520SPH070AT000
ActiveEPCOS - TDK Electronics
FERRITE BEAD, 7OHM, 12A, 1008 ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPZ2520SPH070AT000 |
|---|---|
| Current Rating (Max) [Max] | 12 A |
| DC Resistance (DCR) (Max) [Max] | 1.25 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Impedance @ Frequency | 7 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1008 |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.23 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.31 | |
| 10 | $ 0.17 | |||
| 25 | $ 0.17 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.13 | |||
| 1000 | $ 0.08 | |||
Description
General part information
MPZ2520SPH Series
7 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1008 (2520 Metric) 12A 1.25mOhm
