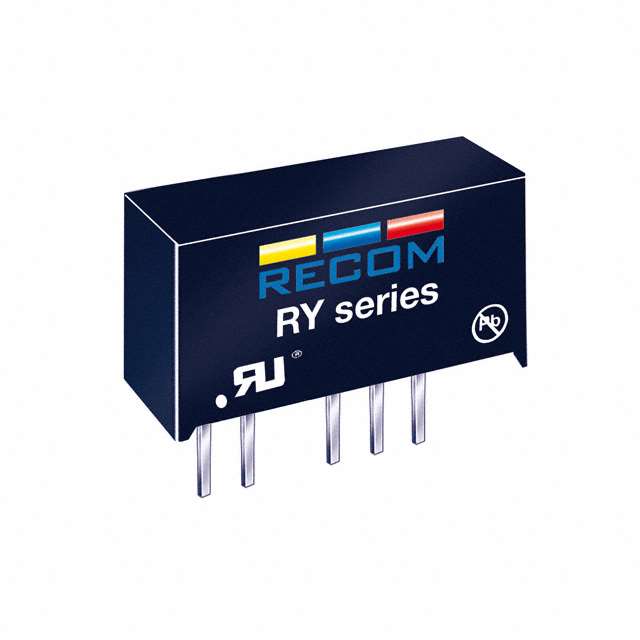

RY-0509S

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV REG 5VIN 9VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RY-0509S

Applications	ITE (Commercial)
Efficiency	62 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.7 mm
Size / Dimension [y]	0.28 in
Size / Dimension [y]	7.1 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.25 V
Voltage - Input (Min) [Min]	4.75 V
Voltage - Isolation	1000 V
Voltage - Output 1	9 V

RY-0924 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 1kV REG 15Vin 9Vout

Part	Mounting Type	Package / Case	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Isolation	Efficiency	Applications	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
RECOM Power RY-0509S	Through Hole	7-SIP Module 5 Leads	1	SCP	-40 °C	70 °C	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	5.25 V	Isolated Module	4.75 V	9 V	1000 V	62 %	ITE (Commercial)
RECOM Power RY-0509D	Through Hole	7-SIP Module 5 Leads	2	SCP	-40 °C	70 °C	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	5.25 V	Isolated Module	4.75 V	9 V	1000 V	60 %	ITE (Commercial)	-9 V	55 mA
RECOM Power RY-2412D	Through Hole	7-SIP Module 5 Leads	2	SCP	-40 °C	70 °C	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	26.4 V	Isolated Module	21.6 V	12 V	1000 V	68 %	ITE (Commercial)	-12 V		42 mA	42 mA
RECOM Power RY-0505S/P	Through Hole	7-SIP Module 5 Leads	1	SCP	-40 °C	70 °C	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	5.25 V	Isolated Module	4.75 V	5 V	1000 V	60 %	ITE (Commercial)			200 mA
RECOM Power RY-0924S	Through Hole	7-SIP Module 5 Leads	1	SCP	-40 °C	70 °C	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	9.45 V	Isolated Module	8.55 V	24 V	1000 V	68 %	ITE (Commercial)			42 mA
RECOM Power RY-0505S	Through Hole	7-SIP Module 5 Leads	1	SCP	-40 °C	70 °C	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	5.25 V	Isolated Module	4.75 V	5 V	1000 V	60 %	ITE (Commercial)			200 mA
RECOM Power RY-0524S	Through Hole	7-SIP Module 5 Leads	1	SCP	-40 °C	70 °C	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	5.25 V	Isolated Module	4.75 V	24 V	1000 V	68 %	ITE (Commercial)			42 mA
