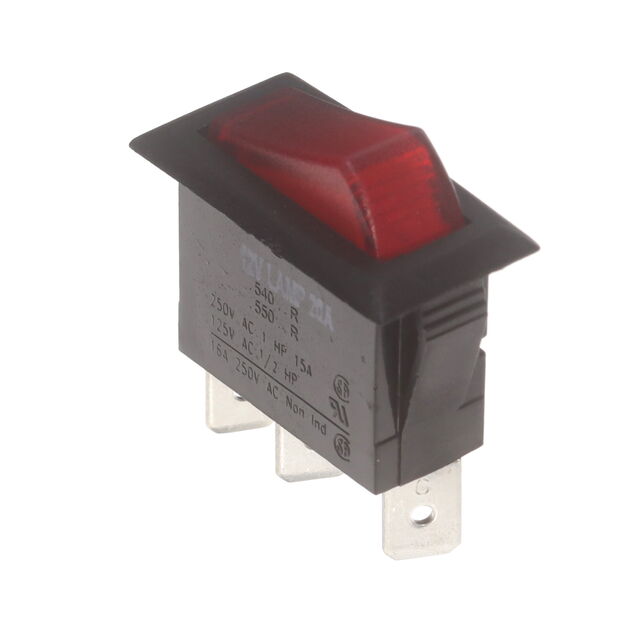

C5503ARBR7
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C5503ARBR7
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 16A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C5503ARBR7 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | CSA, UL |
| Circuit | SPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 16 A |
| Illumination Type, Color | Incandescent, Red |
| Illumination Voltage (Nominal) | 12 VAC |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.6 mm |
| Panel Cutout Dimensions [y] | 14.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.44 | |
| 10 | $ 8.14 | |||
| 25 | $ 7.68 | |||
| 50 | $ 7.35 | |||
| 100 | $ 7.03 | |||
| 250 | $ 6.62 | |||
| 500 | $ 6.33 | |||
| 1000 | $ 6.06 | |||
Description
General part information
C5503AR Series
Rocker Switch SPST 16A (AC) 250 V Panel Mount, Snap-In
