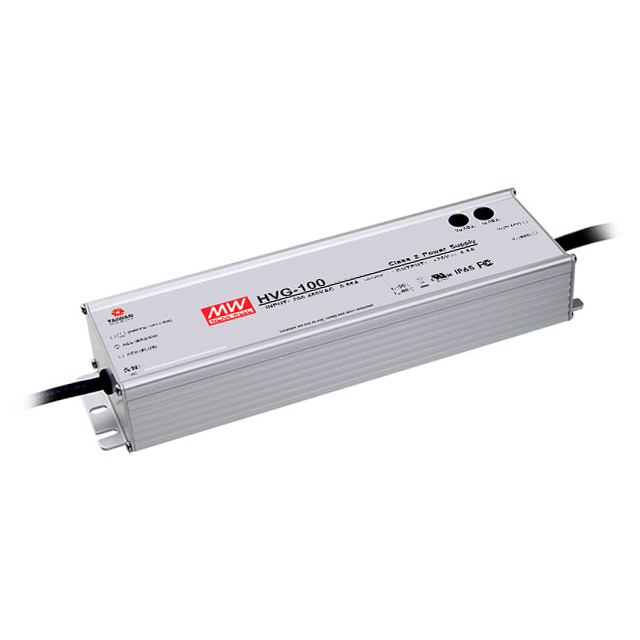

HVG-100-54A

Active

MEAN WELL USA Inc.

LED DVR CC/CV AC/DC 49-58V 1.77A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HVG-100-54A

Active

MEAN WELL USA Inc.

LED DVR CC/CV AC/DC 49-58V 1.77A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HVG-100-54A

Current - Output (Max) [Max]	1.77 A
Efficiency	91 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	96 W
Ratings	IP65
Size / Dimension	38.5 mm, 212 mm, 68 mm
Size / Dimension [x]	8.35 in
Size / Dimension [y]	2.68 "
Size / Dimension [z]	1.52 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max)	528 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	58 V
Voltage - Output [Min]	49 V

HVG-100 Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Max)	Voltage - Isolation	Type	Voltage - Input (Min) [Min]	Termination Style	Dimming	Efficiency	Features	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Topology	Ratings	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]
MEAN WELL USA Inc. HVG-100-20B	Chassis Mount	90 °C	-40 °C	1	528 VAC	3750 V	Constant Current Voltage	180 VAC	Wire Leads	Analog PWM	90 %	OCP OTP OVP SCP	4.8 A	1.52 in	38.5 mm 68 mm 212 mm	8.35 in	2.68 "	AC DC Converter	IP67	96 W
MEAN WELL USA Inc. HVG-100-30A	Chassis Mount	90 °C	-40 °C	1	528 VAC	3750 V	Constant Current Voltage	180 VAC	Wire Leads		91 %	OCP OTP OVP SCP	3.2 A	1.52 in	38.5 mm 68 mm 212 mm	8.35 in	2.68 "	AC DC Converter	IP65	96 W	33 V	27 V
MEAN WELL USA Inc. HVG-100-42B	Chassis Mount	90 °C	-40 °C	1	528 VAC	3750 V	Constant Current Voltage	180 VAC	Wire Leads	Analog PWM	90.5 %	OCP OTP OVP SCP		1.52 in	38.5 mm 68 mm 212 mm	8.35 in	2.68 "	AC DC Converter	IP67	96 W	42 V	21 V
MEAN WELL USA Inc. HVG-100-54A	Chassis Mount	90 °C	-40 °C	1	528 VAC	3750 V	Constant Current Voltage	180 VAC	Wire Leads		91 %	OCP OTP OVP SCP	1.77 A	1.52 in	38.5 mm 68 mm 212 mm	8.35 in	2.68 "	AC DC Converter	IP65	96 W	58 V	49 V
MEAN WELL USA Inc. HVG-100-36B	Chassis Mount	90 °C	-40 °C	1	528 VAC	3750 V	Constant Current Voltage	180 VAC	Wire Leads	Analog PWM	90.5 %	OCP OTP OVP SCP	2.65 A	1.52 in	38.5 mm 68 mm 212 mm	8.35 in	2.68 "	AC DC Converter	IP67	95 W	36 V	18 V
MEAN WELL USA Inc. HVG-100-36A	Chassis Mount	90 °C	-40 °C	1	528 VAC	3750 V	Constant Current Voltage	180 VAC	Wire Leads		90.5 %	OCP OTP OVP SCP	2.65 A	1.52 in	38.5 mm 68 mm 212 mm	8.35 in	2.68 "	AC DC Converter	IP65	95 W	40 V	33 V
MEAN WELL USA Inc. HVG-100-24B	Chassis Mount	90 °C	-40 °C	1	528 VAC	3750 V	Constant Current Voltage	180 VAC	Wire Leads	Analog PWM	91 %	OCP OTP OVP SCP	4 A	1.52 in	38.5 mm 68 mm 212 mm	8.35 in	2.68 "	AC DC Converter	IP67	96 W	24 V	12 V
MEAN WELL USA Inc. HVG-100-24A	Chassis Mount	90 °C	-40 °C	1	528 VAC	3750 V	Constant Current Voltage	180 VAC	Wire Leads		91 %	OCP OTP OVP SCP	4 A	1.52 in	38.5 mm 68 mm 212 mm	8.35 in	2.68 "	AC DC Converter	IP65	96 W	27 V	22 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 88.29
		5	$ 80.72
		10	$ 77.66
		25	$ 73.79

Description

General part information

HVG-100 Series

1.77A 49 ~ 58V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
