09300100305ML

Active

HARTING Technology Group

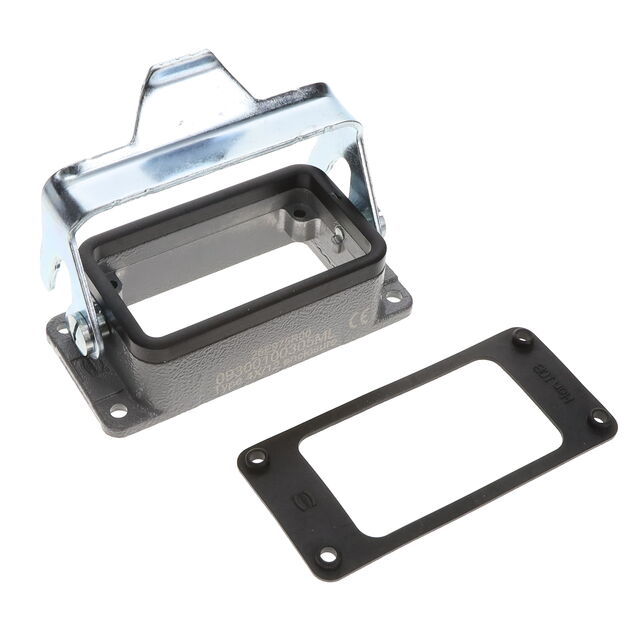

10B BULKHEAD HOUSING, SINGLE LEVER, W/ METAL LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

10B BULKHEAD HOUSING, SINGLE LEVER, W/ METAL LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	09300100305ML

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.661 inches
Size / Dimension [x]	93 mm
Size / Dimension [y]	1.709 in
Size / Dimension [y]	43.4 mm
Size / Dimension [z]	28.9 mm
Size / Dimension [z]	1.138 "
Style	Bottom Entry

Part	Lock Location	Connector Type	Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Style	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Housing Color	Housing Finish
HARTING Technology Group 09300100321ML	Locking Clip (2) on Base Bottom	Base - Panel Mount	10B	43.4 mm	93 mm	1.165 in	1.709 in	29.6 mm	3.661 inches	Bottom Entry
HARTING Technology Group 09300100301ML	Locking Clip (2) on Base Bottom	Base - Panel Mount	10B	43.4 mm	93 mm	1.138 "	1.709 in	28.9 mm	3.661 inches	Bottom Entry	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Aluminum Die Cast	Gray	Powder Coated
HARTING Technology Group 09300100305ML	Locking Clip (1) on Base Bottom	Base - Panel Mount	10B	43.4 mm	93 mm	1.138 "	1.709 in	28.9 mm	3.661 inches	Bottom Entry	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Aluminum Die Cast	Gray	Powder Coated
HARTING Technology Group 09300100303ML	Locking Clip (1) on Base Bottom	Base - Panel Mount	10B	43.4 mm	93 mm	1.138 "	1.709 in	28.9 mm	3.661 inches	Bottom Entry	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Aluminum Die Cast	Gray	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant
