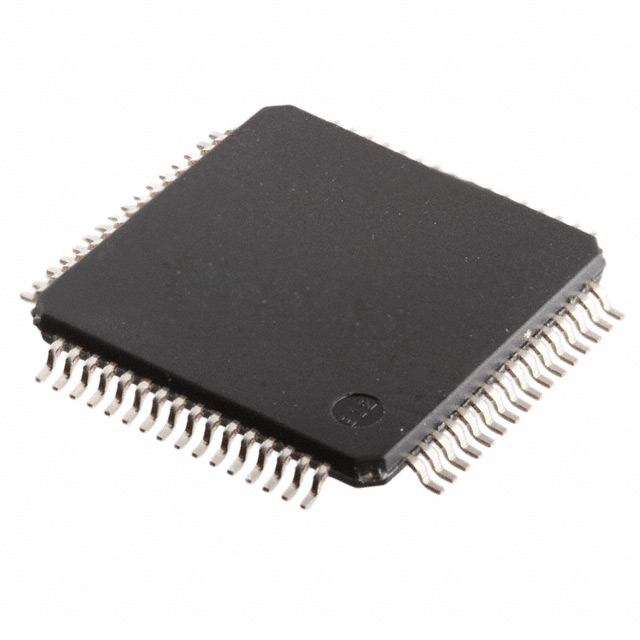

MN101LR05DXW
ObsoletePanasonic Industrial Automation Sales
IC MCU 8BIT 64KB RERAM 80TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MN101LR05DXW
ObsoletePanasonic Industrial Automation Sales
IC MCU 8BIT 64KB RERAM 80TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MN101LR05DXW |
|---|---|
| Connectivity | UART/USART, I2C |
| Core Processor | AM13L |
| Core Size | 8-Bit |
| Data Converters [custom] | 12 b |
| Data Converters [custom] | 8 |
| Mounting Type | Surface Mount |
| Number of I/O | 69 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 80-TQFP |
| Peripherals | PWM, POR, LCD, LVD, DMA, WDT |
| Program Memory Size | 64 KB |
| Program Memory Type | ReRAM |
| RAM Size | 4K x 8 |
| Speed | 10 MHz |
| Supplier Device Package | 80-TQFP (12x12) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MN101LR Series
AM13L MN101L Microcontroller IC 8-Bit 10MHz 64KB (64K x 8) ReRAM 80-TQFP (12x12)
