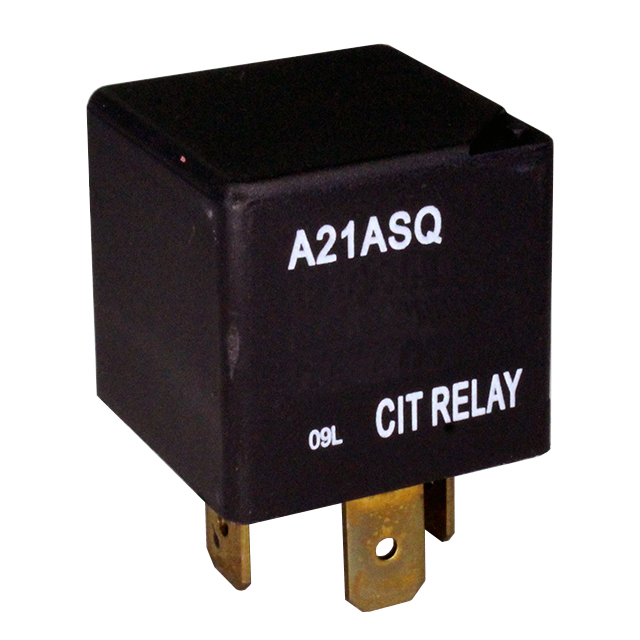

A21ASQ24VDC1.6D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 40A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A21ASQ24VDC1.6D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 40A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A21ASQ24VDC1.6D |
|---|---|
| Coil Current | 66.7 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 360 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 40 A |
| Features | Sealed - Fully, Diode |
| Mounting Type | Socketable |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.27 | |
| 20 | $ 1.96 | |||
| 40 | $ 1.89 | |||
| 60 | $ 1.85 | |||
| 80 | $ 1.82 | |||
| 240 | $ 1.73 | |||
| 440 | $ 1.67 | |||
| 960 | $ 1.61 | |||
| 4900 | $ 1.48 | |||
Description
General part information
A21ASQ Series
RELAY AUTOMOTIVE SPST 40A 24V
