0038-3-17-15-30-27-02-0

Active

Mill-Max Manufacturing Corp.

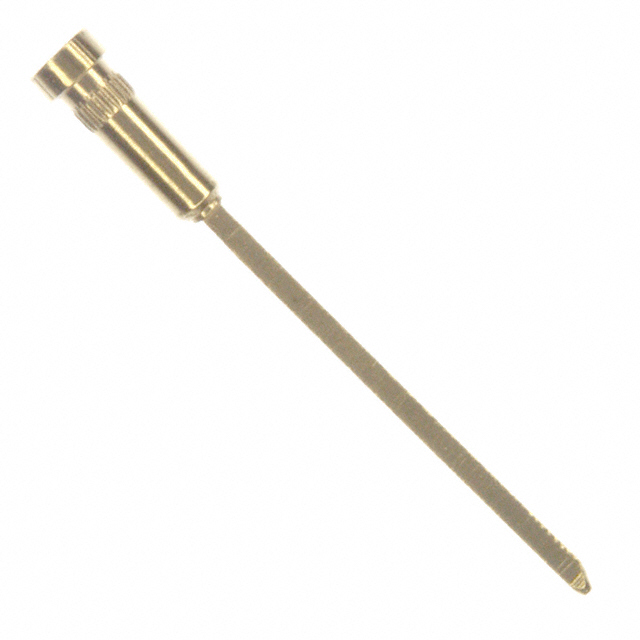

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0038-3-17-15-30-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0038-3-17-15-30-27-02-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	17.78 mm
Length - Overall [x]	0.7 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.162 in
Socket Depth	4.12 mm
Tail Diameter	0.64 mm
Tail Diameter	0.025 in
Tail Type	Wire Wrap
Termination	Press-Fit

0038-3 Series

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Socket Depth	Socket Depth	Tail Type	Termination	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Tail Diameter	Tail Diameter
Mill-Max Manufacturing Corp. 0038-3-17-01-30-02-02-0	0.057 "	1.45 mm	2.54 µm	100 µin	Tin-Lead	2.11 mm	0.083 in	Wire Wrap	Press-Fit	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	-55 °C	125 °C	17.78 mm	0.7 in
Mill-Max Manufacturing Corp. 0038-3-17-80-30-84-02-0	0.057 "	1.45 mm	2.54 µm	100 µin	Tin	4.12 mm	0.162 in	Wire Wrap	Press-Fit	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	-55 °C	125 °C	17.78 mm	0.7 in	0.64 mm	0.025 in
Mill-Max Manufacturing Corp. 0038-3-05-21-00-00-01-0	0.057 "	1.45 mm			Unplated			Wire Wrap	Press-Fit						1.83 mm	0.072 in			17.78 mm	0.7 in
Mill-Max Manufacturing Corp. 0038-3-17-80-30-14-02-0	0.057 "	1.45 mm	0.25 Ám	10 Áin	Gold	4.12 mm	0.162 in	Wire Wrap	Press-Fit	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	-55 °C	125 °C	17.78 mm	0.7 in	0.64 mm	0.025 in
Mill-Max Manufacturing Corp. 0038-3-17-15-30-27-02-0	0.057 "	1.45 mm	0.76 Ám	30 Áin	Gold	4.12 mm	0.162 in	Wire Wrap	Press-Fit	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	-55 °C	125 °C	17.78 mm	0.7 in	0.64 mm	0.025 in
Mill-Max Manufacturing Corp. 0038-3-17-01-30-27-02-0	0.057 "	1.45 mm	0.76 Ám	30 Áin	Gold	4.12 mm	0.162 in	Wire Wrap	Press-Fit	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	-55 °C	125 °C	17.78 mm	0.7 in	0.64 mm	0.025 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.58
		10	$ 0.51
		25	$ 0.46
		50	$ 0.44
		100	$ 0.42
		250	$ 0.38
		500	$ 0.36
		1000	$ 0.30
		2500	$ 0.27

Description

General part information

0038-3 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit

Documents

Technical documentation and resources

No documents available
