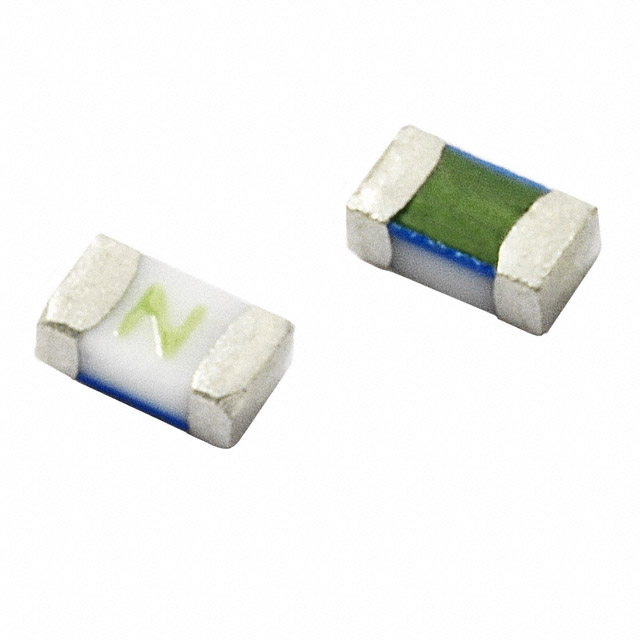

0441004.WR
ActiveELECTRIC FUSE, 4A, 32VDC, 50A (IR), SURFACE MOUNT, 0603, HALOGEN FREE AND ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
0441004.WR
ActiveELECTRIC FUSE, 4A, 32VDC, 50A (IR), SURFACE MOUNT, 0603, HALOGEN FREE AND ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0441004.WR |
|---|---|
| Approval Agency | CSA, UL |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 4 A |
| DC Cold Resistance | 0.0097 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 1.2659 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.061 in |
| Size / Dimension [x] | 1.54 mm |
| Size / Dimension [y] | 0.85 mm |
| Size / Dimension [y] | 0.033 in |
| Size / Dimension [z] | 0.5 mm |
| Size / Dimension [z] | 0.02 " |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0441004 Series
This 100% Lead-free, RoHS compliant and Halogen-free fuse series is designed specifically to provide over-current protection to circuits that require high working ambient temperatures (up to 150ºC) and high inrush currents. The design ensures excellent temperature stability and performance reliability. This high I²t fuse series is designed to have ultra high inrush current withstand capability to avoid nuisance fuse open.
