7411WS 060250
ActiveBelden Inc.

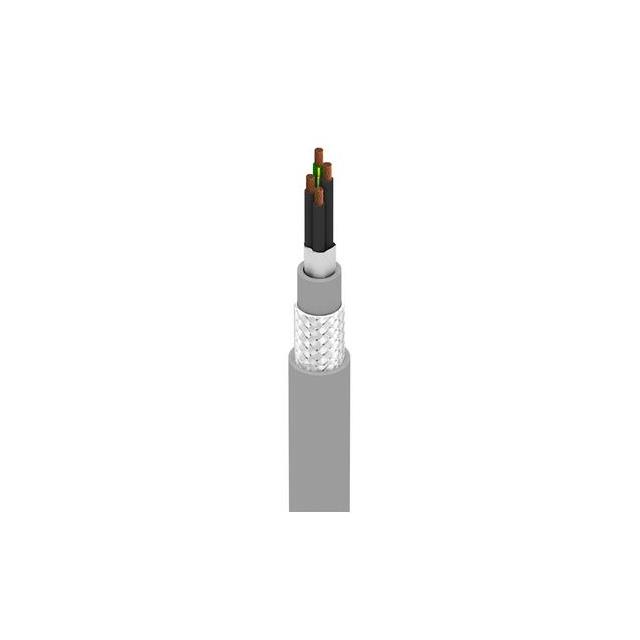

CABLE 4CON 18AWG CHROM SHLD
Deep-Dive with AI
Search across all available documentation for this part.
7411WS 060250
ActiveBelden Inc.
CABLE 4CON 18AWG CHROM SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7411WS 060250 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Features | Oil Resistant, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.391 " |
| Jacket (Insulation) Diameter [diameter] | 9.93 mm |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket (Insulation) Thickness | 1.194 mm |
| Jacket (Insulation) Thickness | 0.047 in |
| Jacket Color | Chrome |
| Length | 3000 " |
| Length | 76.2 m |
| Number of Conductors | 4 |
| Ratings | UL Style 20328 |
| Shield Coverage | 85 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 250 | $ 5.15 | |
Description
General part information
7411WS Series
4 Conductor Multi-Conductor Cable Chrome 18 AWG Braid 250.0' (76.2m)
