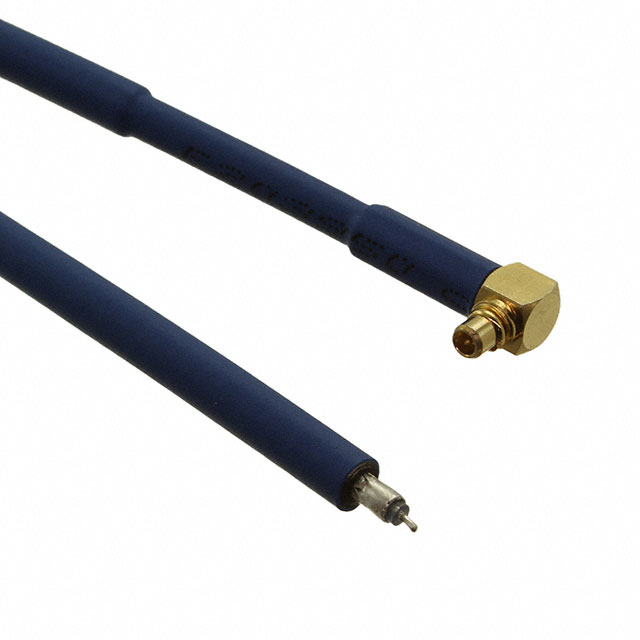

CA-DKCA1-152L5-EPR-HSBL-12

Active

Adam Tech

CBL ASSY MMCX PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CA-DKCA1-152L5-EPR-HSBL-12

Active

Adam Tech

CBL ASSY MMCX PLUG 12"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CA-DKCA1-152L5-EPR-HSBL-12

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Cable (Round)
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Black
Connector Impedance	50 Ohms
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	MMCX to Cable

CA-DKCA1 Series

Part	Frequency - Max [Max]	Color	2nd Connector Mounting Type	1st Connector Mounting Feature	1st Connector Mounting Type	Cable Impedance	1st Contact Gender	Cable Type	2nd Contact Gender	Length	Length	1st Connector	Overall Impedance	2nd Connector	Style	Length [x]	Length [x]	Cable Type [diameter]	Connector Impedance
Adam Tech CA-DKCA1-305L5-APAJ	6000 MHz	Copper	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Female	RG-316	Male	12 "	304.8 mm	SMA Jack	50 Ohms	SMA Plug	SMA to SMA
Adam Tech CA-DKCA1-50LQ-I0I0	6000 MHz	Black	Free Hanging (In-Line)		Free Hanging (In-Line)		Female	Coaxial Cable	Female			IPEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms	U.FL (UMCC) IPEX MHF1 Plug Right Angle	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	1.969 in	50 mm	0.81 mm
Adam Tech CA-DKCA1-100L1-I0I0	6000 MHz	Black	Free Hanging (In-Line)		Free Hanging (In-Line)		Female		Female			IPEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms	U.FL (UMCC) IPEX MHF1 Plug Right Angle	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	3.937 in	0.1 m	1.37 mm
Adam Tech CA-DKCA1-305L1-ALI0	6000 MHz	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount		Male		Female	12 "	304.8 mm	RP-SMA Jack	50 Ohms	U.FL (UMCC) IPEX MHF1 Plug Right Angle	IPEX MHF1 RP-SMA U.FL (UMCC)			1.37 mm
Adam Tech CA-DKCA1-153L5-EPREPR	6000 MHz	Copper	Free Hanging (In-Line)		Free Hanging (In-Line)	50 Ohms	Male	RG-316	Male	0.502 '	153 mm		50 Ohms	MMCX Plug Right Angle	MMCX to MMCX
Adam Tech CA-DKCA1-152L5-EPR-HSBL-12		Black			Free Hanging (In-Line)	50 Ohms	Male	RG-316		12 "	304.8 mm		50 Ohms	Cable (Round)	MMCX to Cable				50 Ohms
Adam Tech CA-DKCA1-152L3-DPDRP-6	6000 MHz	Brown	Free Hanging (In-Line)		Free Hanging (In-Line)	50 Ohms	Male	RG-178	Male			MCX Plug	50 Ohms	MCX Plug Right Angle	MCX to MCX	5.984 in	152 mm
Adam Tech CA-DKCA1-152L0-I0-12		Black			Free Hanging (In-Line)		Female	1.13mm OD Coaxial Cable		12 "	304.8 mm	IPEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms	Cable (Round)	IPEX MHF1 to Cable U.FL (UMCC)				50 Ohms
Adam Tech CA-DKCA1-305L0-AJI0	6000 MHz	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount		Female	1.13mm OD Coaxial Cable	Female	12 "	304.8 mm	SMA Jack	50 Ohms	U.FL (UMCC) IPEX MHF1 Plug Right Angle	IPEX MHF1 SMA U.FL (UMCC)
Adam Tech CA-DKCA1-305L0-AJI5	6000 MHz	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount		Female	1.13mm OD Coaxial Cable	Female	12 "	304.8 mm	SMA Jack	50 Ohms	IPEX MHF4 Plug Right Angle	IPEX MHF1 RP-SMA U.FL (UMCC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.39
		10	$ 11.84
		30	$ 10.49
		50	$ 9.94
		100	$ 9.24
		250	$ 8.42
		500	$ 7.87
		1000	$ 7.37

Description

General part information

CA-DKCA1 Series

Cable Assembly Coaxial MMCX to Cable RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources
