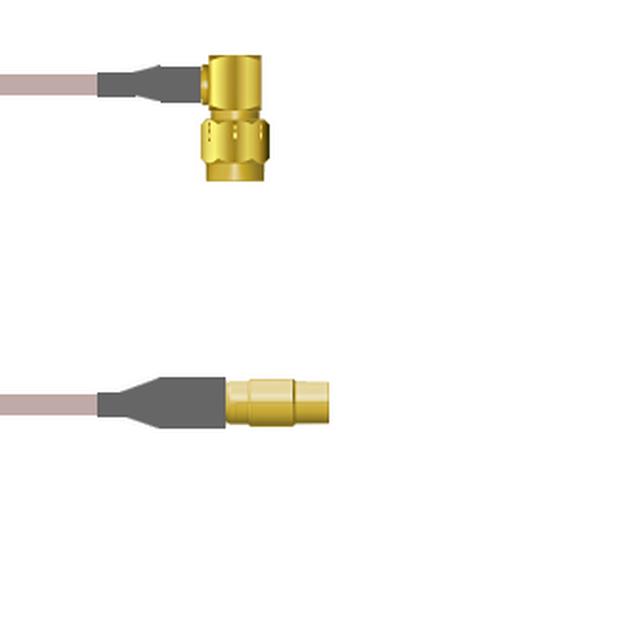

Q-3301G00010.5M
ActiveAmphenol Custom Cable
COAX CBL SMA TO MMCX 19.6"
Deep-Dive with AI
Search across all available documentation for this part.
Q-3301G00010.5M
ActiveAmphenol Custom Cable
COAX CBL SMA TO MMCX 19.6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3301G00010.5M |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 50 cm |
| Length | 19.69 " |
| Overall Impedance | 50 Ohms |
| Style | SMA to MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 128.33 | |
| 25 | $ 125.82 | |||
| 50 | $ 123.32 | |||
| 100 | $ 120.82 | |||
| 250 | $ 118.32 | |||
Description
General part information
Q-3301G0 Series
Cable Assembly Coaxial SMA to MMCX RG-178 19.69" (500.00mm)
Documents
Technical documentation and resources
No documents available
