P10512 BK002

Active

ALPHA WIRE

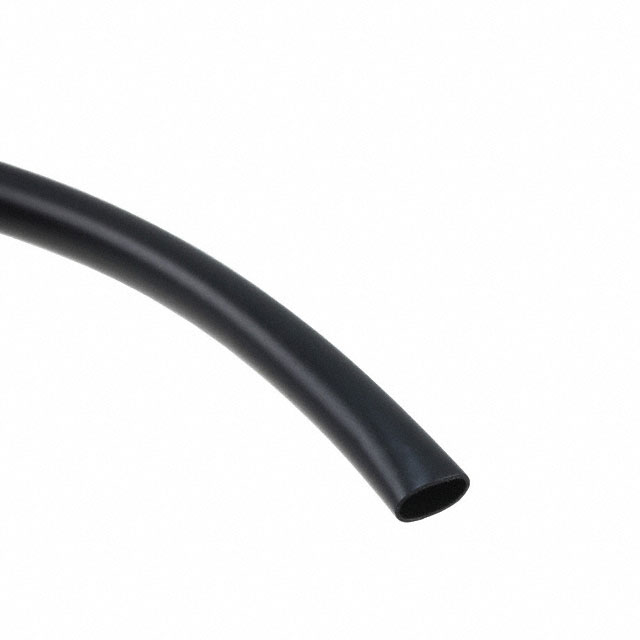

TUBING 0.081" ID PVC 500' BLACK

Search across all available documentation for this part.

Active

ALPHA WIRE

TUBING 0.081" ID PVC 500' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	P10512 BK002

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside [diameter]	0.081 in
Diameter - Inside [diameter]	2.06 mm
Diameter - Outside [diameter]	3.07 mm
Diameter - Outside [diameter]	0.121 in
Environment Protection	UV Resistant, Corrosion Resistant
Heat Protection	Heat Resistant
Length [x]	500 '
Length [x]	152.4 m
Liquid Protection	Oil Resistant
Material	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	UL 224 VW-1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Type	Solid Tubing
Type Attributes	Smooth
Wall Thickness	0.016 in
Wall Thickness	0.4 mm

Part	Environment Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Liquid Protection	Color	Material	Type Attributes	Material Flammability Rating	Heat Protection	Wall Thickness	Wall Thickness	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Abrasion Protection	Type	Length [x]	Length [x]
ALPHA WIRE P10512 BK002	Corrosion Resistant UV Resistant	0.081 in	2.06 mm	Oil Resistant	Black	Poly-Vinyl Chloride (PVC)	Smooth	UL 224 VW-1	Heat Resistant	0.016 in	0.4 mm	3.07 mm	0.121 in	-20 C	105 ░C	Abrasion Resistant	Solid Tubing	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.081" (2.06mm) 500' (152.40m)
