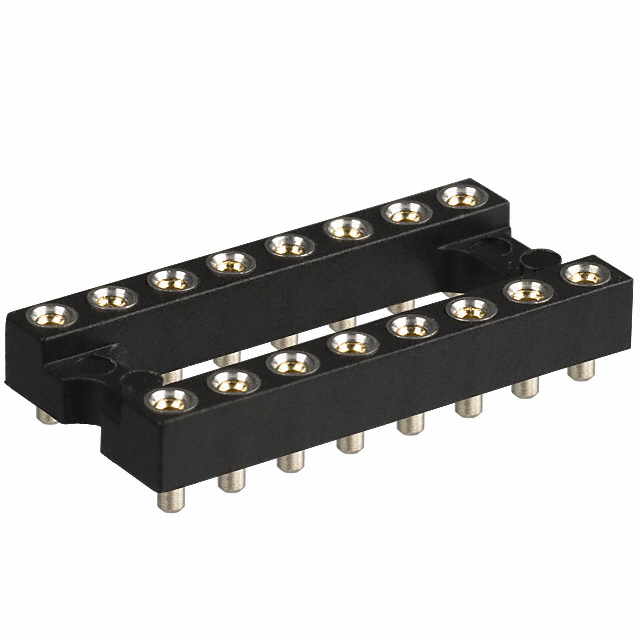

BU160Z-178-HT
ObsoleteOn Shore Technology Inc.
CONN IC DIP SOCKET 16POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BU160Z-178-HT
ObsoleteOn Shore Technology Inc.
CONN IC DIP SOCKET 16POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BU160Z-178-HT |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Copper |
| Contact Finish Thickness - Mating | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm |
| Contact Finish Thickness - Post | Flash |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 7 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 16 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length [x] | 1.5 mm |
| Termination Post Length [x] | 0.059 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BU160Z Series
16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Surface Mount
