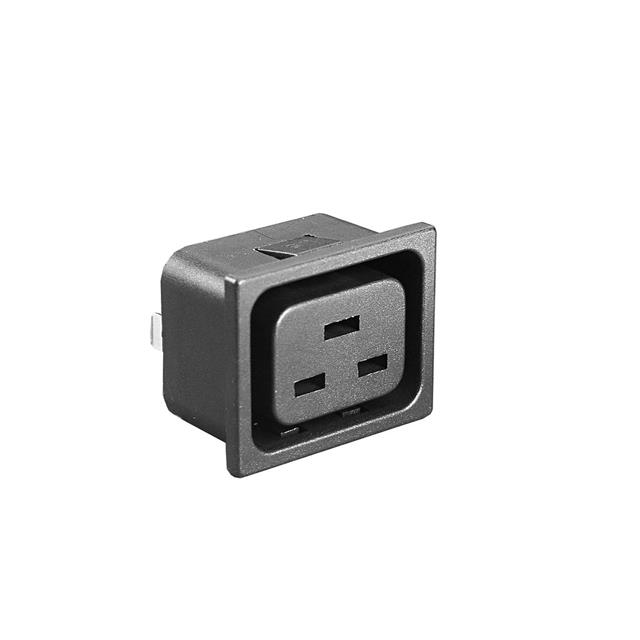

PX0592/15/63

Obsolete

BULGIN LIMITED

PWR ENT RCPT IEC320-2-2J PNL QC

Search across all available documentation for this part.

Obsolete

BULGIN LIMITED

PWR ENT RCPT IEC320-2-2J PNL QC

Technical Specifications

Parameters and characteristics for this part

Specification	PX0592/15/63

Accomodates a Fuse	False
Approval Agency	cULus, VDE
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	16 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	37.6 mm
Panel Cutout Dimensions [y]	29.65 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Panel Thickness [custom]	Panel Thickness [custom]	Mounting Type	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Material Flammability Rating	Accomodates a Fuse	Filter Type
BULGIN LIMITED PX0592/15/63	16 A	0.059 in	1.5 mm	Panel Mount Snap-In	Receptacle Female Sockets	37.6 mm	29.65 mm	cULus VDE	0.25 in	6.3 mm	Quick Connect	250 VAC	UL94 V-0		Unfiltered - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 6.70

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/J Panel Mount, Snap-In
