PDS1-S3-S5-S

Obsolete

CUI Inc.

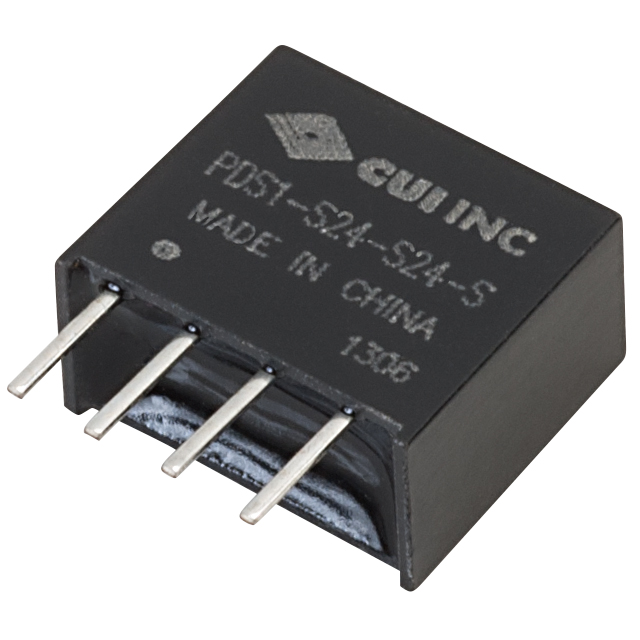

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supply Safety Standards, Agencies, and Marks Datasheet

PDS1-S3-S5-S

Obsolete

CUI Inc.

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsPower Supply Safety Standards, Agencies, and Marks Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDS1-S3-S5-S

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max) [Max]	200 mA
Efficiency	80 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP Module
Size / Dimension [x]	11.6 mm
Size / Dimension [x]	0.46 in
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.24 "
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	55024, 60950-1, 55032 Class A
Type	Isolated Module
Voltage - Input (Max) [Max]	3.63 V
Voltage - Input (Min) [Min]	2.97 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

PDS1-S3 Series

Part	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Approval Agency	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Applications	Voltage - Input (Max) [Max]	Standard Number	Voltage - Output 1	Package / Case	Type	Current - Output (Max) [Max]	Current - Output (Max)	Voltage - Output 2	Current - Output (Max) [Max]
CUI Inc. PDS1-S3-S5-M	2.97 V	1	Surface Mount	EN UL	74 %	0.5 in	12.7 mm	8.3 mm	0.29 "	0.33 in	7.3 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V	55024 55032 Class A 60950-1	5 V	8-SMD Module 5 Leads	Isolated Module
CUI Inc. PDS1-S3-S3-M	2.97 V	1	Surface Mount	EN	69 %	0.5 in	12.7 mm	8.3 mm	0.29 "	0.33 in	7.3 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V	55024 55032	3.3 V	8-SMD Module 5 Leads	Isolated Module	303 mA
CUI Inc. PDS1-S3-D15-M-TR	2.97 V	2	Surface Mount	EN	78 %	0.6 in	15.2 mm	8.3 mm	0.29 "	0.33 in	7.3 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V	55024 55032	15 V	10-SMD Module 6 Leads	Isolated Module		33 mA	-15 V
CUI Inc. PDS1-S3-S3-M-TR	2.97 V	1	Surface Mount	EN	72 %	0.5 in	12.7 mm	8.3 mm	0.29 "	0.33 in	7.3 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V	55024 55032	3.3 V	8-SMD Module 5 Leads	Isolated Module	303 mA
CUI Inc. PDS1-S3-D15-M	2.97 V	2	Surface Mount	EN	78 %	0.6 in	15.2 mm	8.3 mm	0.29 "	0.33 in	7.3 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V	55024 55032	15 V	10-SMD Module 6 Leads	Isolated Module		33 mA	-15 V
CUI Inc. PDS1-S3-S5-S	2.97 V	1	Through Hole	CB Scheme EN IEC UL	80 %	0.46 in	11.6 mm	6 mm	0.4 "	0.24 "	10.2 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V	55024 55032 Class A 60950-1	5 V	4-SIP Module	Isolated Module	200 mA
CUI Inc. PDS1-S3-S5-M-TR	2.97 V	1	Surface Mount	EN UL	74 %	0.5 in	12.7 mm	8.3 mm	0.29 "	0.33 in	7.3 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V	55024 55032 Class A 60950-1	5 V	8-SMD Module 5 Leads	Isolated Module	200 mA
CUI Inc. PDS1-S3-D12-M-TR	2.97 V	2	Surface Mount	EN	78 %	0.6 in	15.2 mm	8.3 mm	0.29 "	0.33 in	7.3 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V	55024 55032	12 V	10-SMD Module 6 Leads	Isolated Module	42 mA		-12 V	42 mA
CUI Inc. PDS1-S3-S3-S	2.97 V	1	Through Hole		80 %	0.46 in	11.6 mm	6 mm	0.4 "	0.24 "	10.2 mm	1.5 kV	-40 °C	105 C	SCP	ITE (Commercial)	3.63 V		3.3 V	4-SIP Module	Isolated Module	303 mA
