GI712S

Active

ifm efector, inc.

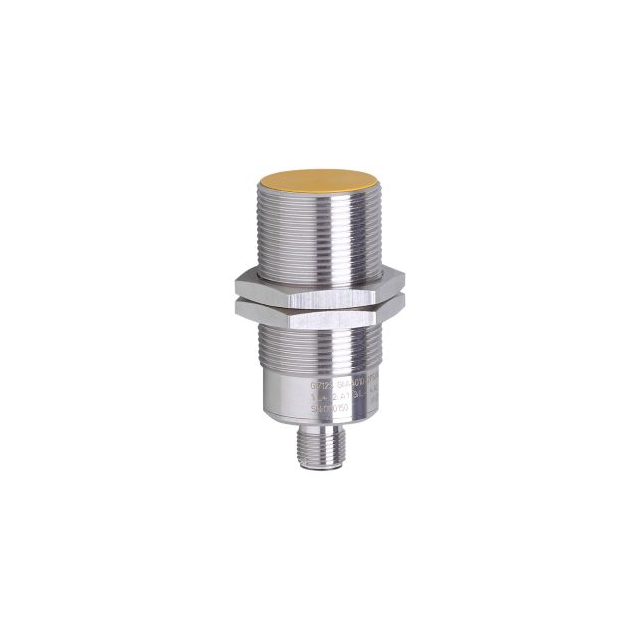

SENSOR PROX INDUCTIVE 1-10MM CYL

Search across all available documentation for this part.

Active

ifm efector, inc.

SENSOR PROX INDUCTIVE 1-10MM CYL

Technical Specifications

Parameters and characteristics for this part

Specification	GI712S

Indicator [custom]	LED
Ingress Protection	IP65, IP67
Material - Body	Nickel-Plated Brass, Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	4-Wire, PNP
Package / Case	Cylinder, Threaded - M18
Sensing Distance [Max]	10 mm
Sensing Distance [Max]	0.394 "
Sensing Distance [Min]	0.039 in
Sensing Distance [Min]	1 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	19.2 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shielding	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Material - Body	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensor Type	Indicator [custom]	Package / Case	Termination Style
ifm efector, inc. GI712S	70 °C	-25 °C	IP65 IP67	Unshielded	19.2 V	30 VDC	4-Wire PNP	Nickel-Plated Brass Polybutylene Terephthalate (PBT)	0.039 in	1 mm	10 mm	0.394 "	Inductive	LED	Cylinder Threaded - M18	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 238.50

General part information

SENSOR PROX INDUCTIVE 1-10MM CYL
