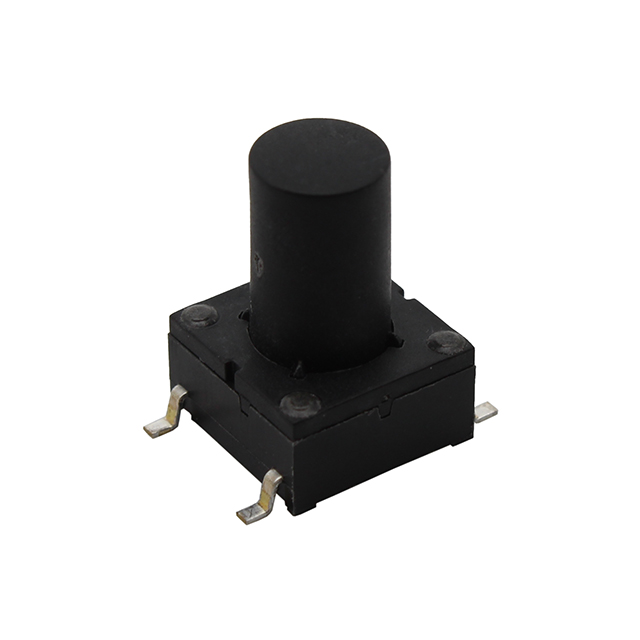

ME0215.0F3502

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	ME0215.0F3502

Actuator Height off PCB, Vertical	15 mm
Actuator Material	Polyamide (PA6T), Nylon 6T
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Surface Mount
Operating Force	350 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	SMD (SMT) Tab

Part	Outline [y]	Outline [x]	Actuator Type	Contact Rating @ Voltage	Switch Travel	Termination Style	Circuit	Switch Function	Actuator Material	Ingress Protection	Illumination	Operating Force	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Actuator Height off PCB, Vertical
CIT Relay and Switch ME0215.0F3502	10 mm	10 mm	Standard	0.05 A 24 VDC	1 mm	SMD (SMT) Tab	SPST-NO	Off-Mom	Polyamide (PA6T) Nylon 6T	IP67 - Dust Tight Waterproof	Non-Illuminated	350 gf	Surface Mount	85 °C	-40 °C	Top Actuated	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
