09200103101

Active

HARTING Technology Group

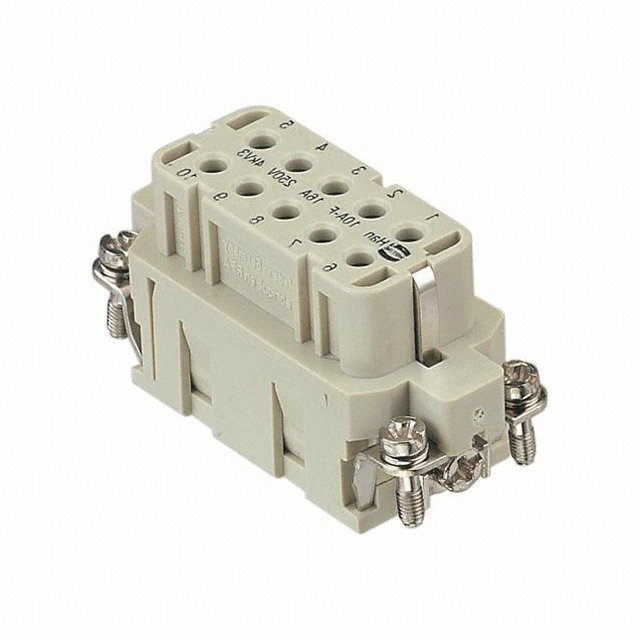

HEAVY DUTY CONNECTOR, 10+PE, UL508, HAN A SERIES, INSERT, 11 CONTACTS, 10A, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 10+PE, UL508, HAN A SERIES, INSERT, 11 CONTACTS, 10A, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09200103101

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Termination Style	Crimp
Voltage Rating	600 V

Part	Gender	Current Rating (Amps)	Termination Style	Contact Type	Number of Positions	Material Flammability Rating	Size	Housing Material	Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating
HARTING Technology Group 09200103001	Male	16 A	Crimp	Han®	10+Ground	UL94 V-0	10 A	Polycarbonate (PC)	Gray	Insert without Contacts	125 °C	-40 °C	600 V
HARTING Technology Group 09200103101	Female	16 A	Crimp	Han®	10+Ground	UL94 V-0	10 A	Polycarbonate (PC)	Gray	Insert without Contacts	125 °C	-40 °C	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 10+Ground Position Crimp
