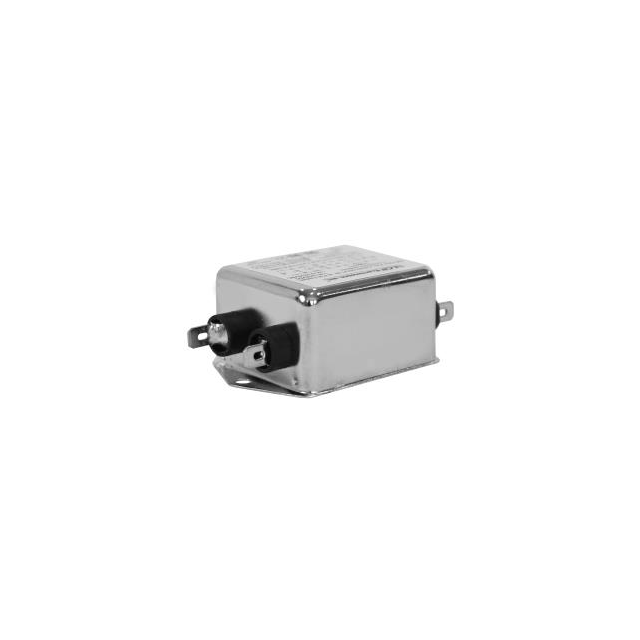

092M.00721.00

Active

Astrodyne TDI

SINGLE-PHASE FILTER BASE INSTALLATION EMC FILTERS ROHS

Search across all available documentation for this part.

Active

Astrodyne TDI

SINGLE-PHASE FILTER BASE INSTALLATION EMC FILTERS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	092M.00721.00

Applications	General Purpose
Approval Agency	CE, SEMKO, cURus
Configuration	Two Stage
Current	7 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Termination Style	Quick Connect
Voltage - Rated AC	250 V
Voltage - Rated AC (Phase to Phase)	1.45 kV

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Applications	Termination Style	Filter Type	Voltage - Rated AC	Voltage - Rated AC (Phase to Phase)	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Current
Astrodyne TDI 092M.03021.00	-25 °C	85 °C	Chassis Mount	CE cURus SEMKO	General Purpose	Quick Connect	Single Phase	250 V	1.45 kV	60 Hz	50 Hz	Two Stage	30 A
Astrodyne TDI 092M.00121.00	-25 °C	85 °C	Chassis Mount	CE cURus SEMKO	General Purpose	Quick Connect	Single Phase	250 V	1.45 kV	60 Hz	50 Hz	Two Stage	1 A
Astrodyne TDI 092M.00721.00	-25 °C	85 °C	Chassis Mount	CE cURus SEMKO	General Purpose	Quick Connect	Single Phase	250 V	1.45 kV	60 Hz	50 Hz	Two Stage	7 A
Astrodyne TDI 092M.01021.00	-25 °C	85 °C	Chassis Mount	CE cURus SEMKO	General Purpose	Quick Connect	Single Phase	250 V	1.45 kV	60 Hz	50 Hz	Two Stage	10 A
Astrodyne TDI 092M.00321.00			Chassis Mount	CE cURus SEMKO	General Purpose	Quick Connect	Single Phase	250 V	1.45 kV	60 Hz	50 Hz	Two Stage	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 7 A 250V 50/60Hz Two Stage Quick Connect
