2N0C

Active

HELLERMANNTYTON

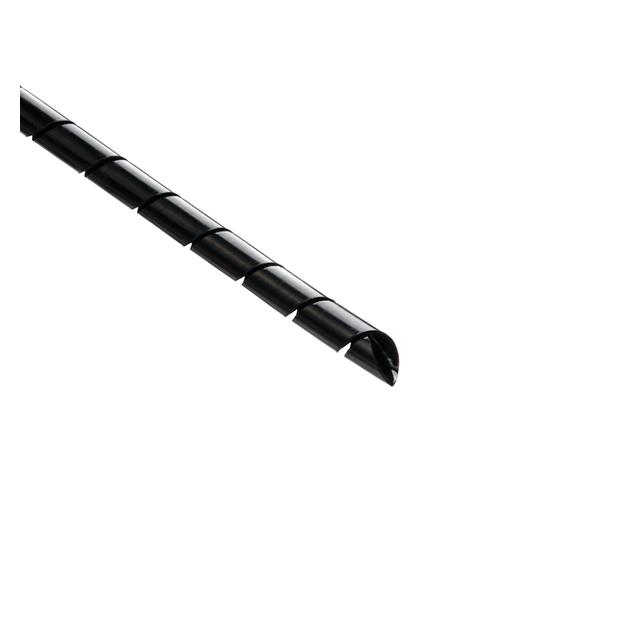

SPIRAL WRAP, 0.25 ", 6.35 MM, NYLON 6 (POLYAMIDE 6), BLACK, 100 FT, 30.5 M

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SPIRAL WRAP, 0.25 ", 6.35 MM, NYLON 6 (POLYAMIDE 6), BLACK, 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	2N0C

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	2 in
Diameter - Inside, Expanded [diameter]	50.8 mm
Diameter - Outside, Non-Expanded [diameter]	6.35 mm
Diameter - Outside, Non-Expanded [diameter]	0.25 in
Environment Protection	UV Resistant
Features	Chemical Resistant, Acid Resistant, Self Extinguishing
Length	100 ft
Length	30.48 m
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-40 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Type	Type Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Features	Wall Thickness	Wall Thickness	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material	Length	Length	Abrasion Protection	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Color	Wall Thickness [custom]	Wall Thickness [custom]	Environment Protection	Material Flammability Rating
HELLERMANNTYTON 2NFP9C	Spiral Wrap	Harness	-60 °C	88 °C	Chemical Resistant Solvent Resistant	1.14 mm	0.045 in	2 in	50.8 mm	Polyethylene (PE)	100 ft	30.48 m	Abrasion Resistant	6.35 mm	0.25 in	Natural
HELLERMANNTYTON 2N9C	Spiral Wrap	Harness	-40 °C	121 °C	Acid Resistant Chemical Resistant Self Extinguishing			2 in	50.8 mm		100 ft	30.48 m	Abrasion Resistant	6.35 mm	0.25 in	Natural	0.025 in	0.64 mm
HELLERMANNTYTON 2NFP0C	Spiral Wrap	Harness	-60 °C	88 °C	Chemical Resistant Solvent Resistant	1.14 mm	0.045 in	2 in	50.8 mm	Polyethylene (PE)	100 ft	30.48 m	Abrasion Resistant	6.35 mm	0.25 in	Black			UV Resistant
HELLERMANNTYTON 2N0C	Spiral Wrap	Harness	-40 °C	121 °C	Acid Resistant Chemical Resistant Self Extinguishing			2 in	50.8 mm		100 ft	30.48 m	Abrasion Resistant	6.35 mm	0.25 in	Black	0.025 in	0.64 mm	UV Resistant	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
