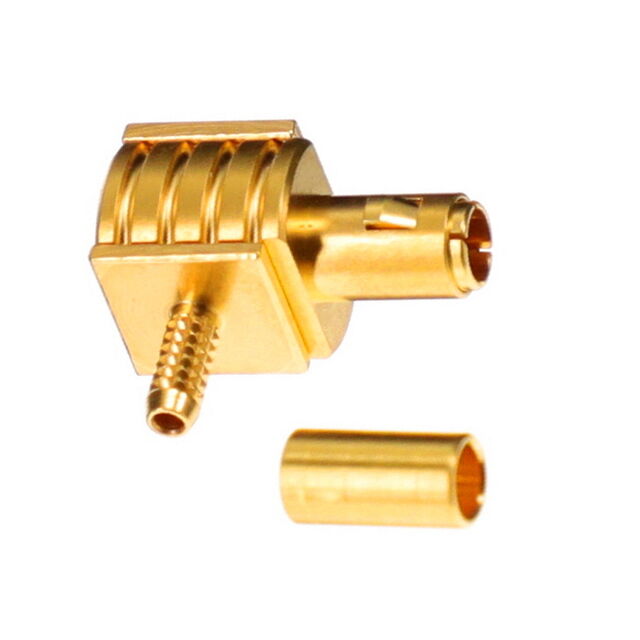

FLS.01.250.DLAE24

Active

LEMO

CONN R/A PLUG COAX PIN SLDER

Search across all available documentation for this part.

Active

LEMO

CONN R/A PLUG COAX PIN SLDER

Technical Specifications

Parameters and characteristics for this part

Specification	FLS.01.250.DLAE24

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Miniature Coaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	230 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	300 VDC

Part	Shield Termination	Housing Color	Connector Style	Ingress Protection	Cable Group	Body Finish	Number of Ports	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Center Contact Plating	Fastening Type	Impedance	Connector Type	Mounting Type	Center Contact Material	Dielectric Material	Mating Cycles	Body Material
LEMO FLS.01.250.DLAE31	Crimp	Gold	Miniature Coaxial	IP50	179B 187A 188A 316 RG-174	Gold	1	300 VDC	230 °C	-55 °C	Solder	Gold	Snap-On	50 Ohms	Male Pin Plug	Free Hanging (In-Line) Right Angle	Brass	Polyetheretherketone (PEEK)	1000	Brass
LEMO FLS.01.250.DLAE24	Crimp	Gold	Miniature Coaxial	IP50		Gold		300 VDC	230 °C	-55 °C	Solder	Gold	Push-Pull	50 Ohms	Male Pin Plug	Free Hanging (In-Line) Right Angle	Brass	Polyetheretherketone (PEEK)	1000	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Miniature Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
