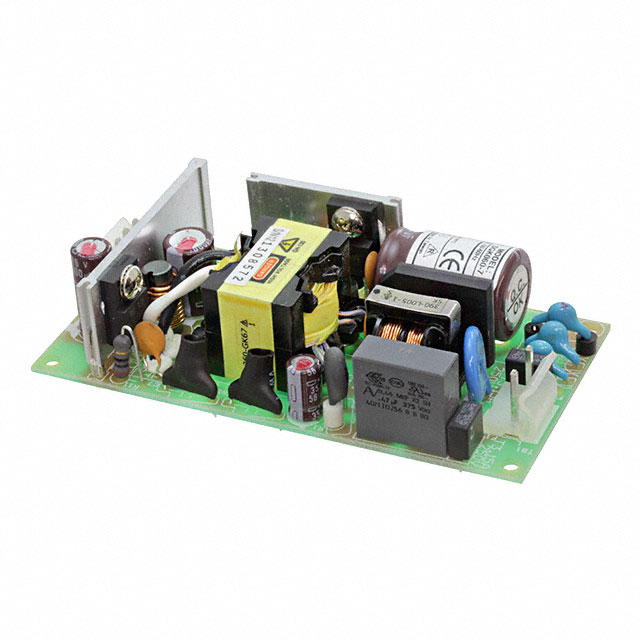

DGK060-7
ActiveTri-Mag, LLC
AC/DC CONVERTER 12V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DGK060-7
ActiveTri-Mag, LLC
AC/DC CONVERTER 12V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DGK060-7 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 5 A |
| Efficiency | 85 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 24.6 mm |
| Size / Dimension [z] | 0.97 in |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 70.60 | |
| 5 | $ 67.24 | |||
| 10 | $ 65.84 | |||
| 25 | $ 64.04 | |||
| 50 | $ 62.71 | |||
| 100 | $ 61.40 | |||
Description
General part information
DGK060 Series
Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
