Q-3501K000R.25M

Active

Amphenol Custom Cable

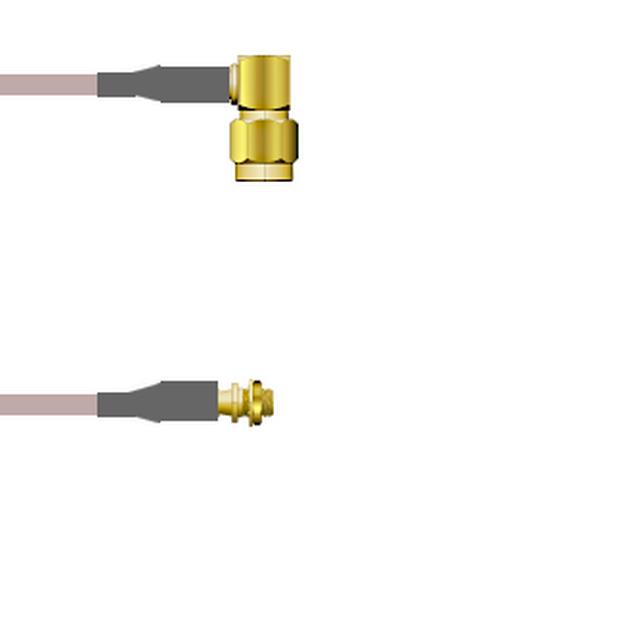

CBL ASSY SMA-MMCX PLG-JCK 9.843"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-MMCX PLG-JCK 9.843"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3501K000R.25M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	SMA to MMCX

Part	Cable Type	2nd Connector Mounting Feature	Features	2nd Connector Mounting Type	Color	2nd Connector	2nd Contact Gender	Frequency - Max [Max]	Connector Impedance	Length [x]	Length [x]	Overall Impedance	1st Connector	1st Connector Mounting Type	Cable Impedance	Style	1st Contact Gender
Amphenol Custom Cable Q-3501K000R.25M	RG-316 DS	Bulkhead - Front Side Nut	Shielded	Panel Mount	Copper	MMCX Jack	Female	3 GHz	50 Ohms	9.843 "	250 mm	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	50 Ohms	SMA to MMCX	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to MMCX RG-316 DS 9.843" (250.00mm)

Technical documentation and resources

No documents available
