09628240306

Active

HARTING Technology Group

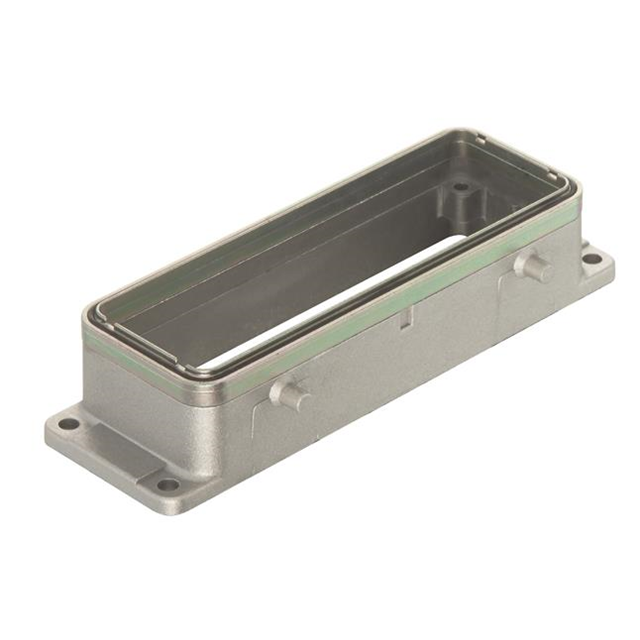

24B EMC BULKHEAD HOUSING, DOUBLE LEVER, FOR HOOD W/ LEVERS

Search across all available documentation for this part.

Active

HARTING Technology Group

24B EMC BULKHEAD HOUSING, DOUBLE LEVER, FOR HOOD W/ LEVERS

Technical Specifications

Parameters and characteristics for this part

Specification	09628240306

Connector Type	Base - Panel Mount
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Style	Bottom Entry

Part	Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Lock Location	Style
HARTING Technology Group 09628240315	24 B	1.406 "	2.126 in	35.7 mm	145 mm	5.709 in	54 mm	Aluminum Die Cast	125 °C	-40 °C	IP66	Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry
HARTING Technology Group 09628240270
HARTING Technology Group 09628240391	24 B	1.197 "	1.906 in	30.4 mm	145 mm	5.709 in	48.4 mm	Aluminum Die Cast	200 °C	-40 °C	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry
HARTING Technology Group 09628240306	24 B							Aluminum Die Cast	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (2) on Base Bottom	Bottom Entry
HARTING Technology Group 09628240312
HARTING Technology Group 09628240398	24 B	1.406 "	2.126 in	35.7 mm	145 mm	5.709 in	54 mm	Aluminum Die Cast	125 °C	-40 °C	IP66	Base - Panel Mount	Locking Clip (1) on Base Bottom	Bottom Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 24B IP65 - Dust Tight, Water Resistant
