430887-301

Laird Thermal Systems, Inc.

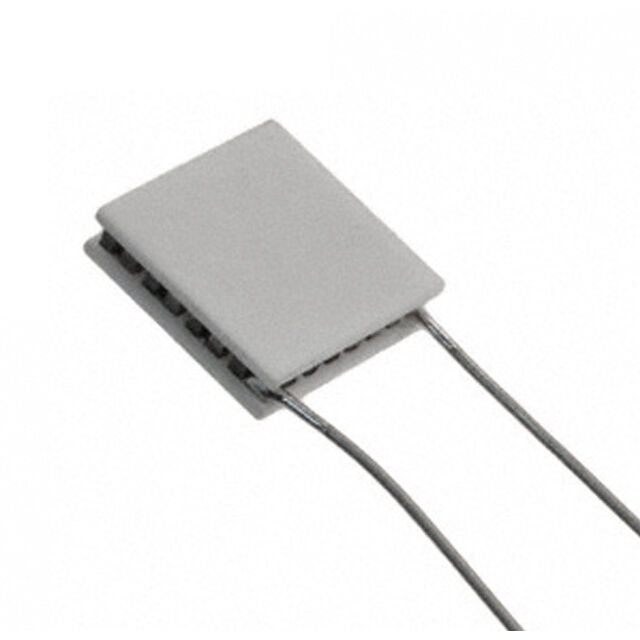

PELTIER OT24,31,F1,1010,TA,W2.25

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIER OT24,31,F1,1010,TA,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Operating Temperature	Height [z]	Features	Number of Stages	Voltage - Max [Max]	Delta Tmax @ Th	Qmax @ Th
Laird Thermal Systems, Inc. 430887-301	10 mm	10 mm	2.4 A	80 °C	2.49 mm	Lead Wires Non-Sealed	1	3.9 V	72 °C	5.3 W
Laird Thermal Systems, Inc. 430887-302			2.4 A	80 °C		Lead Wires Non-Sealed	1	3.9 V	72 °C	5.3 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 5.3W @ 25°C 2.4 A 80°C
