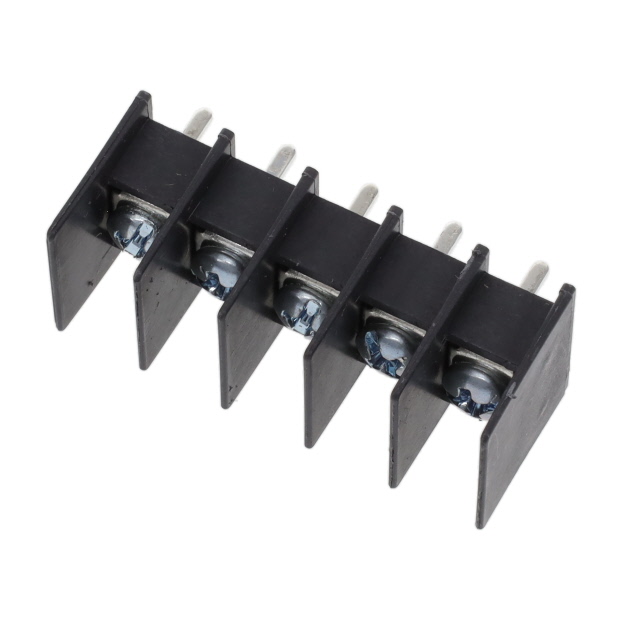

325110-05-0
ActiveCurtis Industries
CONN BARRIER STRIP 5CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325110-05-0
ActiveCurtis Industries
CONN BARRIER STRIP 5CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325110-05-0 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Current Rating (Amps) | 15 A |
| Material - Insulation | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 5 |
| Number of Rows | 1 |
| Number of Wire Entries | 5 |
| Operating Temperature | 105 C |
| Pitch [x] | 8.26 mm |
| Pitch [x] | 0.325 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
325110 Series
| Part | Number of Rows | Material - Insulation | Top Termination | Material Flammability Rating | Terminal Screw Material | Terminal Block Type | Mounting Type | Operating Temperature | Number of Circuits | Pitch [x] | Pitch [x] | Barrier Type | Voltage Rating | Current Rating (Amps) | Number of Wire Entries | Wire Gauge [Min] | Wire Gauge [Max] | Bottom Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 12 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 12 | 14 AWG | 22 AWG | PC Pin |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 10 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 10 | 14 AWG | 22 AWG | PC Pin |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 4 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 4 | 14 AWG | 22 AWG | PC Pin |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 21 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 21 | 14 AWG | 22 AWG | PC Pin |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 15 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 15 | 14 AWG | 22 AWG | PC Pin |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 13 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 13 | 14 AWG | 22 AWG | PC Pin |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 5 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 5 | 14 AWG | 22 AWG | PC Pin |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 11 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 11 | 14 AWG | 22 AWG | PC Pin |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 9 | 14 AWG | 22 AWG | PC Pin | |
Curtis Industries | 1 | Polypropylene (PP) | Screws | UL94 V-0 | Steel | Barrier Block | Through Hole | 105 C | 18 | 8.26 mm | 0.325 in | 2 Wall (Dual) | 300 VDC | 15 A | 18 | 14 AWG | 22 AWG | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.22 | |
| 10 | $ 2.44 | |||
Description
General part information
325110 Series
5 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
