3613C8R2K

Active

TE Connectivity Passive Product

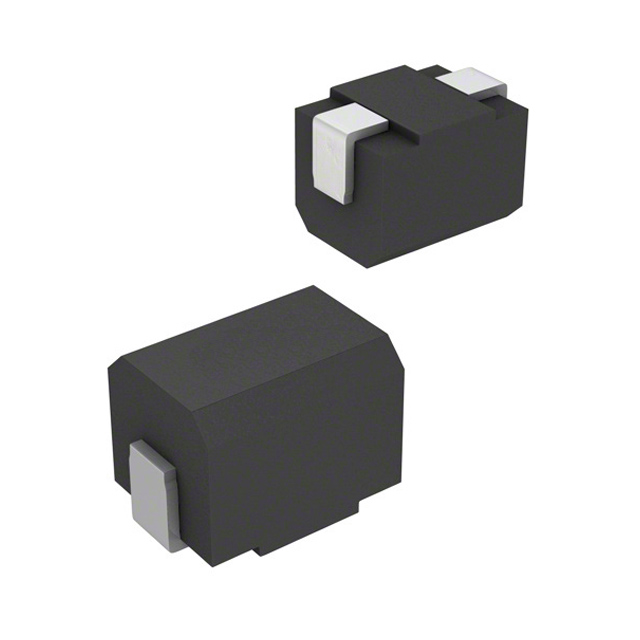

FIXED IND 8.2UH 270MA 1.4OHM SMD

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

FIXED IND 8.2UH 270MA 1.4OHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Inductance	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Material - Core	Q @ Freq	Shielding	DC Resistance (DCR)
TE Connectivity Passive Product 3613C101K	Surface Mount	796 kHz	100 °C	-30 ░C	10 %	100 µH	110 mA	3.2 mm	0.177 in	4.5 mm	0.126 "	8 Ohm	1812 (4532 Metric)	3.4 mm	0.134 in	8 MHz	Ferrite	40 796 kHz	Unshielded
TE Connectivity Passive Product 3613C8R2K	Surface Mount	7.96 MHz	100 °C	-30 ░C	10 %	8.2 µH	270 mA	3.2 mm	0.177 in	4.5 mm	0.126 "	1.4 Ohm	1812 (4532 Metric)	3.4 mm	0.134 in	25 MHz	Ferrite	7.96 MHz 50	Unshielded
TE Connectivity Passive Product 3613C4R7K	Surface Mount	7.96 MHz	100 °C	-30 ░C	10 %	4.7 ÁH	0.315 A	3.2 mm	0.177 in	4.5 mm	0.126 "	1 Ohm	1812 (4532 Metric)	3.4 mm	0.134 in	35 MHz	Ferrite	7.96 MHz 50	Unshielded
TE Connectivity Passive Product 3613C331K	Surface Mount	796 kHz	100 °C	-30 ░C	10 %	330 µH	85 mA	3.2 mm	0.177 in	4.5 mm	0.126 "		1812 (4532 Metric)	3.4 mm	0.134 in	3.5 MHz	Ferrite	40 796 kHz	Unshielded	14 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.29

General part information

8.2 µH Unshielded Inductor 270 mA 1.4Ohm Max 1812 (4532 Metric)
