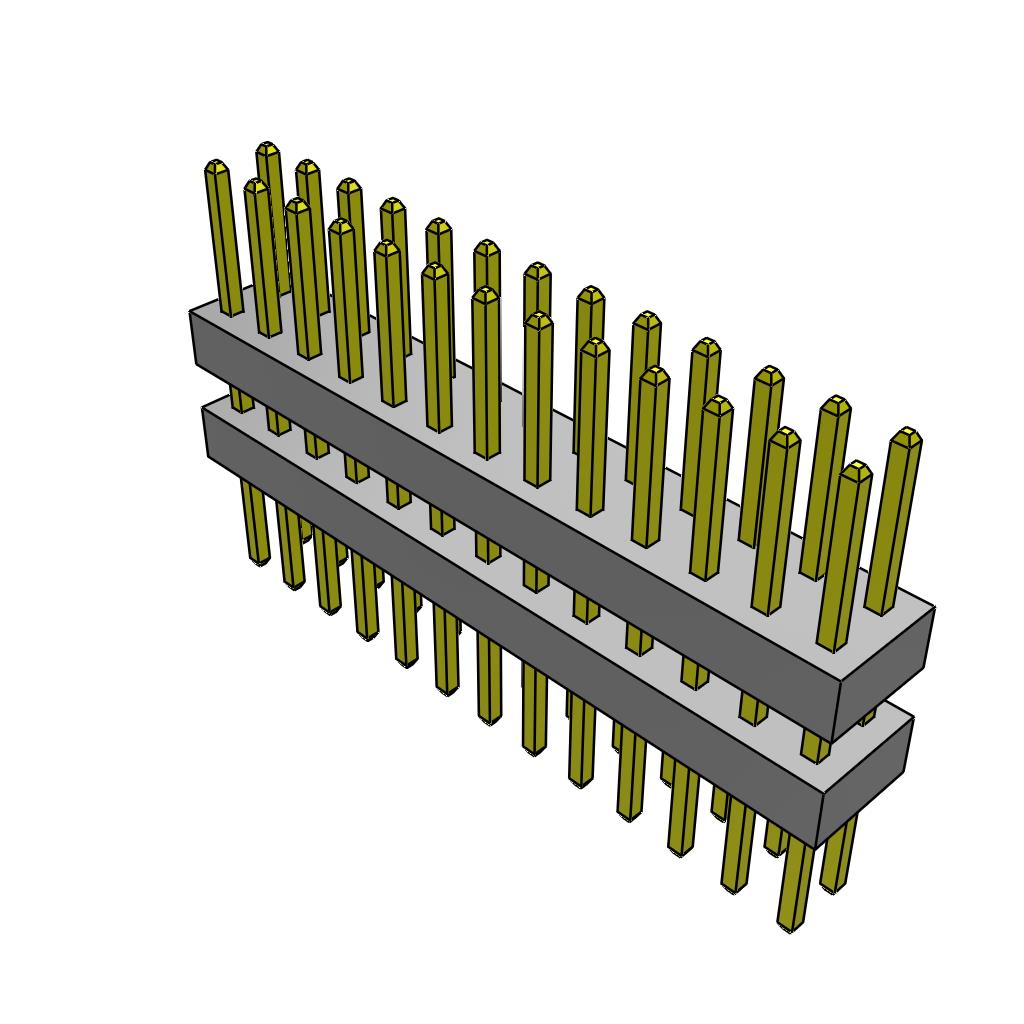

TW-13-10-G-D-225-184

Active

Samtec Inc.

CONN BRD STACK 2.00 26POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK 2.00 26POS

Technical Specifications

Parameters and characteristics for this part

Specification	TW-13-10-G-D-225-184

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.51 Ám
Contact Finish Thickness - Post (Mating)	20 Áin
Length - Overall Pin	0.614 in
Length - Overall Pin	15.596 mm
Length - Stack Height [x]	5.715 mm
Length - Stack Height [x]	0.225 in
Length - Tail	4.674 mm
Length - Tail	0.184 "
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

Part	Mounting Type	Row Spacing	Row Spacing	Number of Rows	Length - Overall Pin	Length - Overall Pin	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail [custom]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Termination	Color	Length - Tail [x]	Length - Tail [x]	Length - Tail
Samtec Inc. TW-13-10-L-D-295-140	Through Hole	2 mm	0.079 in	2	0.614 in	15.596 mm	0.079 in	2 mm	3.556 mm	0.14 in	0.25 Ám	10 Áin	Gold	0.179 in	4.547 mm	26	0.295 in	7.493 mm	Solder	Black
Samtec Inc. TW-13-10-G-D-385-120	Through Hole	2 mm	0.079 in	2	0.614 in	15.596 mm	0.079 in	2 mm			0.51 Ám	20 Áin	Gold	0.109 in	2.769 mm	26	0.385 in	9.779 mm	Solder	Black	0.12 in	3.048 mm
Samtec Inc. TW-13-10-L-D-375-090	Through Hole	2 mm	0.079 in	2	0.614 in	15.596 mm	0.079 in	2 mm			0.25 Ám	10 Áin	Gold	0.149 in	3.785 mm	26	0.375 in	9.525 mm	Solder	Black	0.09 in	2.286 mm
Samtec Inc. TW-13-10-L-D-200-118	Through Hole	2 mm	0.079 in	2	0.614 in	15.596 mm	0.079 in	2 mm			0.25 Ám	10 Áin	Gold	0.296 in	7.518 mm	26			Solder	Black
Samtec Inc. TW-13-10-L-D-340-120
Samtec Inc. TW-13-10-G-D-225-184	Through Hole	2 mm	0.079 in	2	0.614 in	15.596 mm	0.079 in	2 mm	4.674 mm		0.51 Ám	20 Áin	Gold			26	0.225 in	5.715 mm	Solder	Black			0.184 "
Samtec Inc. TW-13-10-L-D-380-100	Through Hole	2 mm	0.079 in	2	0.614 in	15.596 mm	0.079 in	2 mm			0.25 Ám	10 Áin	Gold	0.134 in	3.404 mm	26	0.38 in	9.652 mm	Solder	Black	0.1 "	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.49
