837-076-520-212
ActiveEDAC Inc.

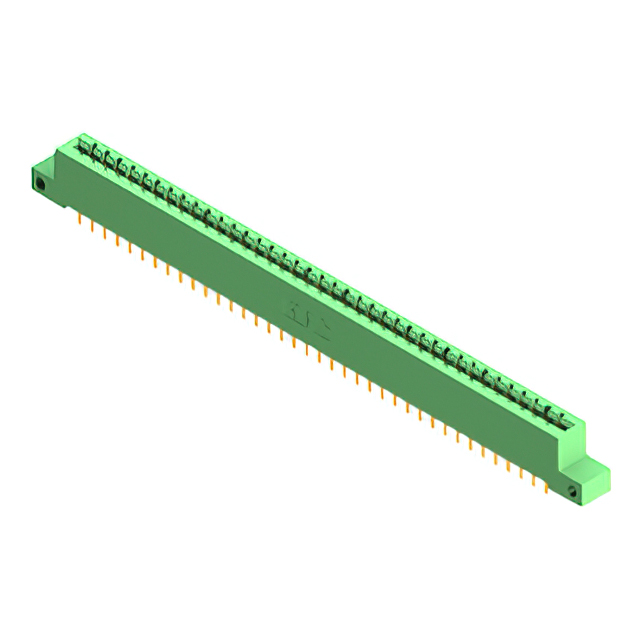

3.96MM STRAIGHT 76P -40℃~+125℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-076-520-212
ActiveEDAC Inc.
3.96MM STRAIGHT 76P -40℃~+125℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-076-520-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
837-076 Series
...
| Part | Number of Positions/Bay/Row [custom] | Termination | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Color | Read Out | Contact Material | Flange Feature | Pitch [x] | Pitch [x] | Termination Rows | Contact Type | Contact Finish | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 38 | Wire Wrap | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | |||||
EDAC Inc. | 38 | Solder | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | 3.25 mm | 0.128 " | |||
EDAC Inc. | 38 | Wire Wrap | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | |||||
EDAC Inc. | 38 | Solder | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | 3.25 mm | 0.128 in | Card Extender | |||
EDAC Inc. | 38 | Wire Wrap | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | 3.96 mm | 0.156 in | |||
EDAC Inc. | 38 | Wire Wrap | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | |||||
EDAC Inc. | 38 | Solder | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole Right Angle | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | Side Mount Opening Unthreaded | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | 38 | Solder | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | Flush Mount Side Opening Unthreaded | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | 3.25 mm | 0.128 " | |||
EDAC Inc. | 38 | Wire Wrap | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female | ||||||
EDAC Inc. | 38 | Solder | 76 | 2 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Through Hole | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Green | Dual | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | 2 | Cantilever | Gold | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
