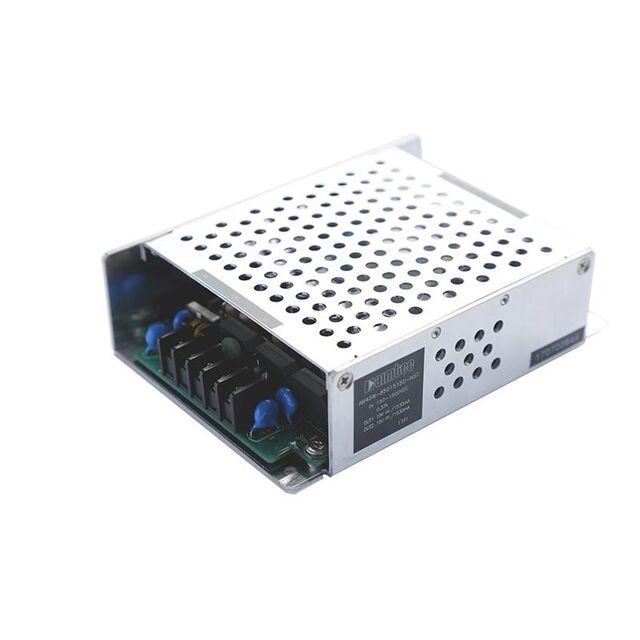

AM45W-8501515D-NST
Activeaimtec
DC/DC CONVERTER 2X15V 46W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM45W-8501515D-NST
Activeaimtec
DC/DC CONVERTER 2X15V 46W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM45W-8501515D-NST |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1.53 A |
| Current - Output (Max) | 1.53 A |
| Efficiency | 76 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 46 W |
| Size / Dimension [x] | 5.69 in |
| Size / Dimension [x] | 144.5 mm |
| Size / Dimension [y] | 4.13 in |
| Size / Dimension [y] | 104.9 mm |
| Size / Dimension [z] | 40.1 mm |
| Size / Dimension [z] | 1.58 in |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 1500 V |
| Voltage - Input (Min) [Min] | 150 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 130.52 | |
| 4 | $ 126.60 | |||
| 10 | $ 122.80 | |||
| 20 | $ 119.12 | |||
| 40 | $ 115.55 | |||
| 60 | $ 112.08 | |||
| 80 | $ 108.72 | |||
Description
General part information
AM45W Series
Enclosed DC DC Converter 2 Output 15V 15V 1.53A, 1.53A 1500V Input
