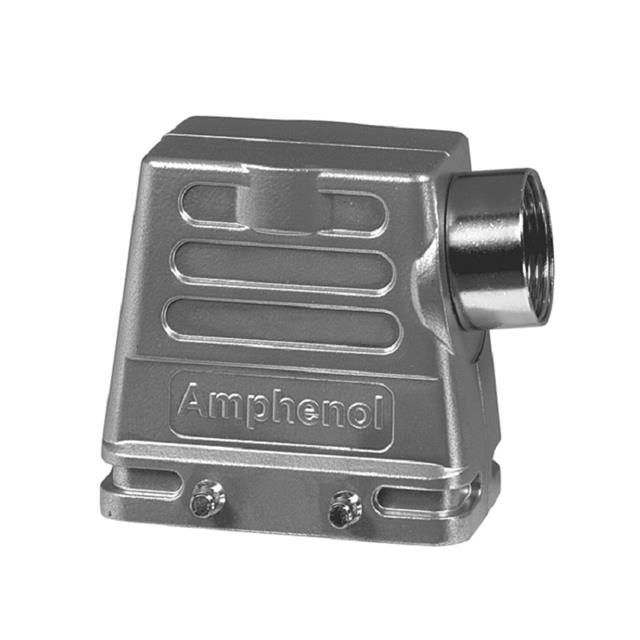

CONN HOOD SIDE ENTRY SZE16 PG29
Deep-Dive with AI
Search across all available documentation for this part.
C146 10G016 501 8
ActiveAmphenol Tuchel Industrial
CONN HOOD SIDE ENTRY SZE16 PG29
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 10G016 501 8 |
|---|---|
| Connector Type | Hood |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E16 |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 76 mm |
| Size / Dimension [z] | 2.992 in |
| Style | Side Entry |
| Thread Size | PG29 |
C146 10G016 Series
| Part | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size | Ingress Protection | Housing Material | Connector Type | Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Locking Clip (1) on Base Bottom | 100 °C | -40 °C | PG21 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | E16 | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Hood | Side Entry | |
Amphenol Tuchel Industrial | Locking Clip (1) on Base Bottom | 100 °C | -40 °C | PG29 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 62 mm | 2.441 " | E16 | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | Hood | Side Entry | |
Amphenol Tuchel Industrial | Locking Clip (2) on Hood Top | 100 °C | -40 °C | PG21 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | E16 | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Hood - Coupling | Bottom Entry | Cable to Cable |
Amphenol Tuchel Industrial | Locking Clip (2) on Base Bottom | 100 °C | -40 °C | PG29 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 62 mm | 2.441 " | E16 | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | Hood | Top Entry | |
Amphenol Tuchel Industrial | Locking Clip (1) on Base Bottom | 100 °C | -40 °C | PG29 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | E16 | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Hood | Side Entry | |
Amphenol Tuchel Industrial | Locking Clip (2) on Base Bottom | 100 °C | -40 °C | PG29 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | E16 | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Hood | Side Entry | |
Amphenol Tuchel Industrial | Locking Clip (2) on Base Bottom | 100 °C | -40 °C | PG21 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | E16 | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Hood | Dual Top Entry | |
Amphenol Tuchel Industrial | Locking Clip (1) on Base Bottom | 100 °C | -40 °C | PG21 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 62 mm | 2.441 " | E16 | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | Hood | Top Entry | |
Amphenol Tuchel Industrial | Locking Clip (1) on Base Bottom | 100 °C | -40 °C | PG16 | 3.11 in | 1.161 " | 29.5 mm | 79 mm | 58 mm | 2.283 in | A16 | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | Hood | Side Entry | |
Amphenol Tuchel Industrial | Locking Clip (2) on Base Bottom | 100 °C | -40 °C | PG29 | 3.681 " | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | E16 | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Hood | Top Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 20.97 | |
Description
General part information
C146 10G016 Series
Hood Connector Side Entry PG29 E16 IP65 - Dust Tight, Water Resistant
