C1EXG-5036G
ActiveCW Industries
IDC CABLE - CCE50G/AE50G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C1EXG-5036G
ActiveCW Industries
IDC CABLE - CCE50G/AE50G/X
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C1EXG-5036G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Card Edge to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.48 | |
| 10 | $ 14.60 | |||
| 25 | $ 14.04 | |||
| 50 | $ 13.48 | |||
| 100 | $ 12.73 | |||
| 250 | $ 11.61 | |||
| 500 | $ 10.86 | |||
| 1000 | $ 9.96 | |||
Description
General part information
C1EXG-5 Series

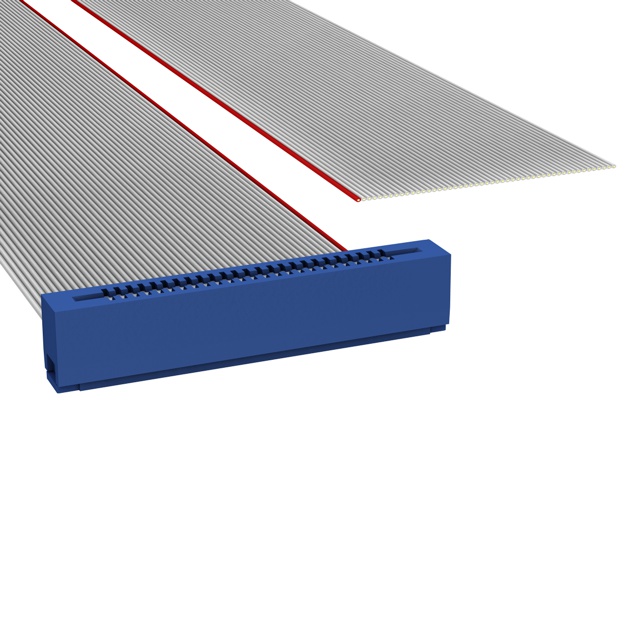

50 Position Cable Assembly Rectangular Card Edge to Cable 3.00' (914.40mm)
Documents
Technical documentation and resources
