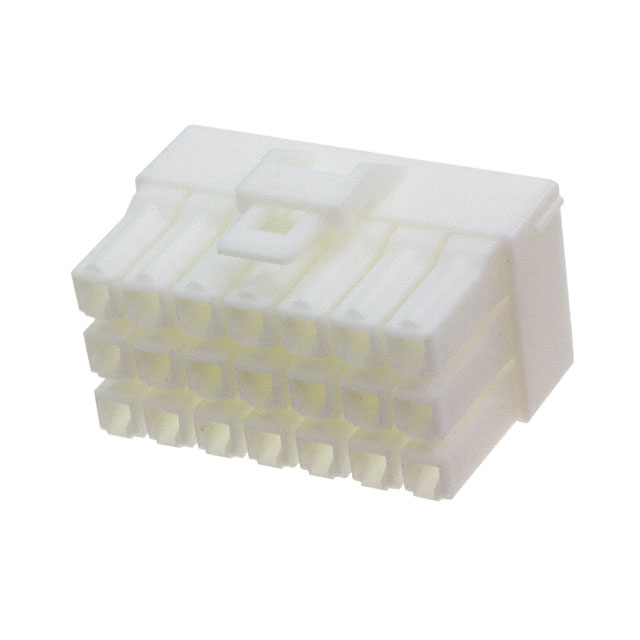

YLP-21V

Active

JST Sales America Inc.

CONN PLUG HSG 21POS 4.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart

YLP-21V

Active

JST Sales America Inc.

CONN PLUG HSG 21POS 4.50MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YLP-21V

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	21
Number of Rows	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.177 in
Pitch [x]	4.5 mm

YLP Series

Part	Fastening Type	Color	Contact Termination	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Note	Connector Type	Mounting Type	Number of Rows	Insulation Material	Pitch [x]	Pitch [x]	Number of Positions
JST Sales America Inc. YLP-01V	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C	1	Contacts Not Included	Plug	Free Hanging (In-Line)	1	Polyamide (PA66) Nylon 6/6
JST Sales America Inc. YLP-09V	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C	9	Contacts Not Included	Plug	Free Hanging (In-Line)	3	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm
JST Sales America Inc. YLP-02V	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C	2	Contacts Not Included	Plug	Free Hanging (In-Line)	1	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm
JST Sales America Inc. YLP-16V(NN)	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C		Contacts Not Included	Plug	Free Hanging (In-Line)	2	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm	16
JST Sales America Inc. YLP-03V	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C		Contacts Not Included	Plug	Free Hanging (In-Line)	1	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm
JST Sales America Inc. YLP-12VA	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C	12	Contacts Not Included	Plug	Free Hanging (In-Line)	2	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm
JST Sales America Inc. YLP-06V	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C	6	Contacts Not Included	Plug	Free Hanging (In-Line)	2	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm
JST Sales America Inc. YLP-21V	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C	21	Contacts Not Included	Plug	Free Hanging (In-Line)	3	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm
JST Sales America Inc. YLP-15V	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C	15	Contacts Not Included	Plug	Free Hanging (In-Line)	3	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm
JST Sales America Inc. YLP-12V	Latch Lock	White	Crimp	Female Socket	90 °C	-25 °C	12	Contacts Not Included	Plug	Free Hanging (In-Line)	3	Polyamide (PA66) Nylon 6/6	0.177 in	4.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25
		10	$ 0.95
		25	$ 0.86
		50	$ 0.79
		100	$ 0.73
		250	$ 0.66
		500	$ 0.61
		1000	$ 0.57
		2500	$ 0.52

Description

General part information

YLP Series

21 Rectangular Connectors - Housings Plug White 0.177" (4.50mm)

Documents

Technical documentation and resources

Datasheet

JST Prefix Suffix Chart

Datasheet
