T9AP5D52-12
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
T9AP5D52-12
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 20A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T9AP5D52-12 |
|---|---|
| Coil Current | 83 mA |
| Coil Insulation | Class F |
| Coil Resistance | 144 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 20 A |
| Load - Max Switching | 5540 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | Quick Connect - 0.187"/0.250" |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.36 | |
| 10 | $ 7.84 | |||
| 25 | $ 6.97 | |||
| 50 | $ 6.62 | |||
| 100 | $ 6.27 | |||
| 250 | $ 5.58 | |||
| 500 | $ 5.23 | |||
| 1000 | $ 4.88 | |||
Description
General part information
T9AP5 Series

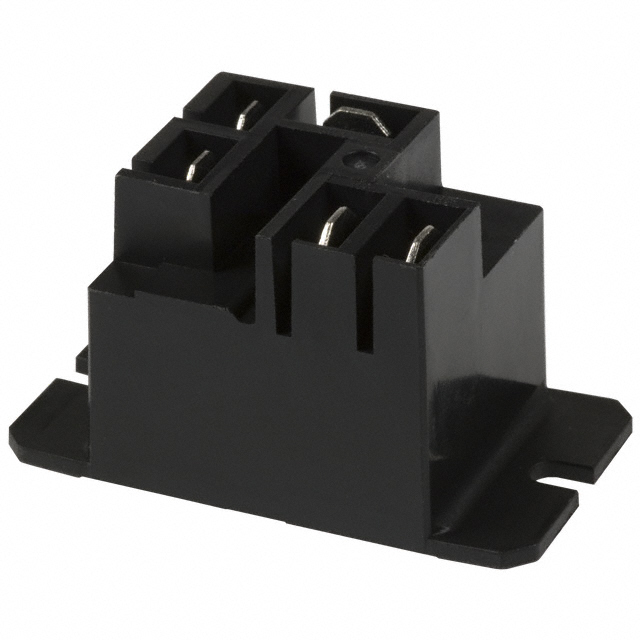

General Purpose Relay SPDT (1 Form C) 12VDC Coil Chassis Mount
