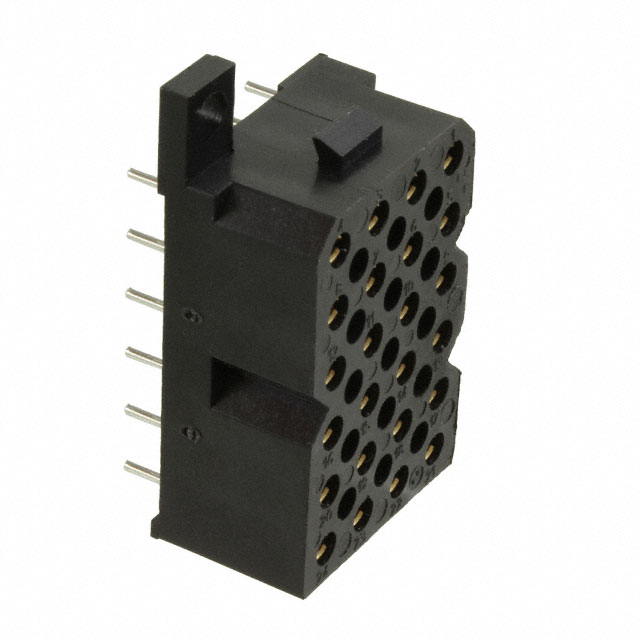

SMS24RE3S6

Active

Souriau-Sunbank by Eaton

CONN RCPT 24POS 0.2 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMS24RE3S6

Active

Souriau-Sunbank by Eaton

CONN RCPT 24POS 0.2 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMS24RE3S6

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	IP40
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Style	Board to Board, Cable
Termination	Solder

SMS24R Series

Part	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Contact Termination	Fastening Type	Note	Contact Type	Color	Row Spacing	Row Spacing	Features	Contact Finish - Mating	Style	Ingress Protection	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Current Rating (Amps)	Material Flammability Rating	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Post	Insulation Color	Contact Material	Contact Length - Mating	Contact Length - Mating	Shrouding	Overall Contact Length	Overall Contact Length
Souriau-Sunbank by Eaton SMS24R3TR29	6	0.2 in	5.08 mm	24	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Receptacle	Panel Mount Snap-In	Crimp	Latch Holder	Contacts Not Included	Male or Female	Gray	5.08 mm	0.2 in
Souriau-Sunbank by Eaton SMS24RDH1		0.2 in	5.08 mm	24	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Receptacle	Free Hanging (In-Line)	Crimp	Locking Ramp	Contacts Not Included	Male or Female		5.08 mm	0.2 in	Strain Relief
Souriau-Sunbank by Eaton SMS24R-4TR29				24	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Receptacle				Contacts Not Included		Gray			Flame Retardant
Souriau-Sunbank by Eaton SMS24RE3S6	6			24		-55 °C	105 ░C	Receptacle	Through Hole		Locking Ramp		Female Socket				Mounting Flange	Gold	Board to Board Cable	IP40	5.08 mm	0.2 "	Flash	5 A	UL94 V-0	Circular	0.173 in	4.4 mm	29.5 Áin	0.75 Ám	All	5.08 mm	0.2 in	Solder	Gold	Black	Copper Alloy
Souriau-Sunbank by Eaton SMS24RE4S6	6			24	Polyester Glass Filled	-55 °C	125 °C	Header	Through Hole		Locking Ramp		Male Pin				Mounting Flange	Gold	Board to Cable/Wire	IP40	5.08 mm	0.2 "		5 A	UL94 V-0	Circular	0.173 in	4.4 mm	16 Áin	0.41 Ám	All	5.08 mm	0.2 in	Solder	Tin	Black	Copper Alloy	0.28 in	7.11 mm	Unshrouded	0.972 in	24.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.00
		10	$ 13.11
		100	$ 11.99
		500	$ 12.74

Description

General part information

SMS24R Series

24 Position Receptacle Connector 0.200" (5.08mm) Through Hole Gold
