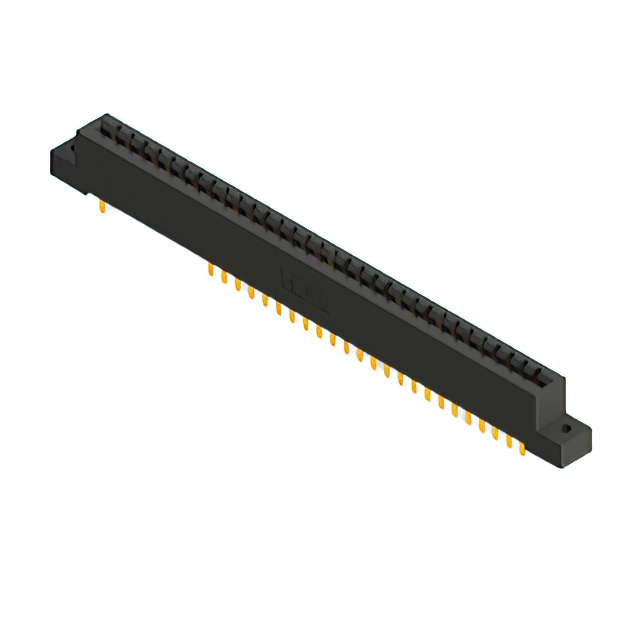

887-064-544-202
ActiveEDAC Inc.
STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-064-544-202
ActiveEDAC Inc.
STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-064-544-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
887-064 Series
...
| Part | Mounting Type | Read Out | Card Type | Termination | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Color | Material - Insulation | Pitch [x] | Pitch [x] | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Number of Rows | Gender | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole Right Angle | Dual | Non Specified - Dual Edge | Solder | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | ||||
EDAC Inc. | Through Hole | Dual | Non Specified - Dual Edge | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | ||||
EDAC Inc. | Through Hole | Dual | Non Specified - Dual Edge | Wire Wrap | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | 3.25 mm | 0.128 " | ||
EDAC Inc. | Through Hole | Dual | Non Specified - Dual Edge | Wire Wrap | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | 3.25 mm | 0.128 " | ||
EDAC Inc. | Through Hole | Dual | Non Specified - Dual Edge | Solder | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | 3.96 mm | 0.156 in | ||
EDAC Inc. | Through Hole | Dual | Non Specified - Dual Edge | Wire Wrap | Floating Bobbin Flush Mount | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | 2.95 mm | 0.116 in | ||
EDAC Inc. | Through Hole | Dual | Non Specified - Dual Edge | Wire Wrap | Side Mount Opening Unthreaded | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | 3.25 mm | 0.128 in | ||
EDAC Inc. | Through Hole | Dual | Non Specified - Dual Edge | Solder | Top Mount Opening Unthreaded | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | 3.96 mm | 0.156 in | ||
EDAC Inc. | Through Hole Right Angle | Dual | Non Specified - Dual Edge | Solder | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole Right Angle | Dual | Non Specified - Dual Edge | Solder | 125 °C | -40 °C | Black | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | Cantilever | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | 32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 82.16 | |
Description
General part information
887-064 Series
64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
