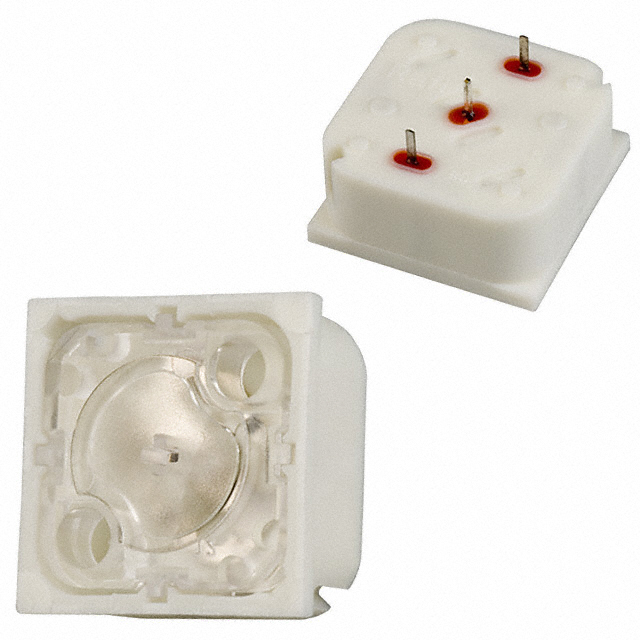

3.14.001.001/0000

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RF 19 Series

3.14.001.001/0000

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Deep-Dive with AI

DocumentsDatasheet RF 19 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3.14.001.001/0000

Actuator Height off PCB, Vertical	9.7 mm
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	42 VAC/DC, 0.1 A
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force [Max]	306 gf
Operating Force [Min]	204 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	19.05 mm
Outline [y]	19.05 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	PC Pin

3.14.001 Series

Part	Contact Rating @ Voltage	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Switch Travel	Actuator Orientation	Outline [x]	Outline [y]	Actuator Type	Termination Style	Operating Force	Illumination	Mounting Type	Mechanical Life	Illumination Type, Color	Actuator Height off PCB, Vertical	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Operating Force [Min]	Operating Force [Max]
RAFI USA 3.14.001.083/0000	0.1 A 35 VAC/DC	SPST-NO	70 °C	-25 °C	Off-Mom	0.5 mm	Top Actuated	19.05 mm	19.05 mm	Square Button	PC Pin	296 gf	Illuminated	Through Hole	1000000 Cycles	LED Yellow	9.7 mm
RAFI USA 3.14.001.672/0000
RAFI USA 3.14.001.582/0000
RAFI USA 3.14.001.506/0000		SPST-NO	70 °C	-25 °C	Off-Mom	0.5 mm	Top Actuated	19.05 mm	19.05 mm	Square Button	PC Pin	296 gf	Non-Illuminated	Through Hole	1000000 Cycles			12.5 mm	35 VAC/DC	0.25 A
RAFI USA 3.14.001.043/0000		SPST-NO	70 °C	-25 °C	Off-Mom	0.5 mm	Top Actuated	19.05 mm	19.05 mm	Square Button	PC Pin	296 gf	Illuminated	Through Hole	1000000 Cycles	LED Yellow	9.7 mm		35 VAC/DC	0.25 A
RAFI USA 3.14.001.042/0000		SPST-NO	70 °C	-25 °C	Off-Mom	0.5 mm	Top Actuated	19.05 mm	19.05 mm	Square Button	PC Pin	296 gf	Illuminated	Through Hole	1000000 Cycles	Green LED	9.7 mm		35 VAC/DC	0.25 A
RAFI USA 3.14.001.032/0000	0.1 A 42 VAC/DC	SPST-NO	70 °C	-25 °C	Off-Mom	0.5 mm	Top Actuated	19.05 mm	19.05 mm	Square Button	PC Pin		Illuminated	Through Hole	1000000 Cycles	Green LED	9.7 mm				204 gf	306 gf
RAFI USA 3.14.001.041/0000		SPST-NO	70 °C	-25 °C	Off-Mom	0.5 mm	Top Actuated	19.05 mm	19.05 mm	Square Button	PC Pin	296 gf	Illuminated	Through Hole	1000000 Cycles	LED Red	9.7 mm		35 VAC/DC	0.25 A
RAFI USA 3.14.001.001/0000	0.1 A 42 VAC/DC	SPST-NO	70 °C	-25 °C	Off-Mom	0.5 mm	Top Actuated	19.05 mm	19.05 mm	Square Button	PC Pin		Non-Illuminated	Through Hole	1000000 Cycles		9.7 mm				204 gf	306 gf
RAFI USA 3.14.001.030/0000		SPST-NO	70 °C	-25 °C	Off-Mom	0.2 mm	Top Actuated	19.05 mm	19.05 mm	Standard	PC Pin	296 gf	Non-Illuminated	Through Hole	1000000 Cycles		9.7 mm		35 VAC/DC	0.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.93
		10	$ 3.43
		25	$ 3.24
		100	$ 2.98
		250	$ 2.81
		500	$ 2.69
		1000	$ 2.58
		2500	$ 2.43

Description

General part information

3.14.001 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

Datasheet

RF 19 Series

Datasheet
