ML51XB9AE
ActiveNuvoton Technology Corporation
IC MCU 8BIT 16KB FLASH 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ML51XB9AE
ActiveNuvoton Technology Corporation
IC MCU 8BIT 16KB FLASH 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ML51XB9AE |
|---|---|
| Connectivity | I2C, SPI, UART/USART |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Data Converters | A/D 6x12b SAR |
| Mounting Type | Surface Mount |
| Number of I/O | 17 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 20-WFQFN Exposed Pad |
| Peripherals | Brown-out Detect/Reset, LVR, PWM, POR, WDT |
| Program Memory Size | 16 KB |
| Program Memory Type | FLASH |
| RAM Size | 1 K |
| Speed | 24 MHz |

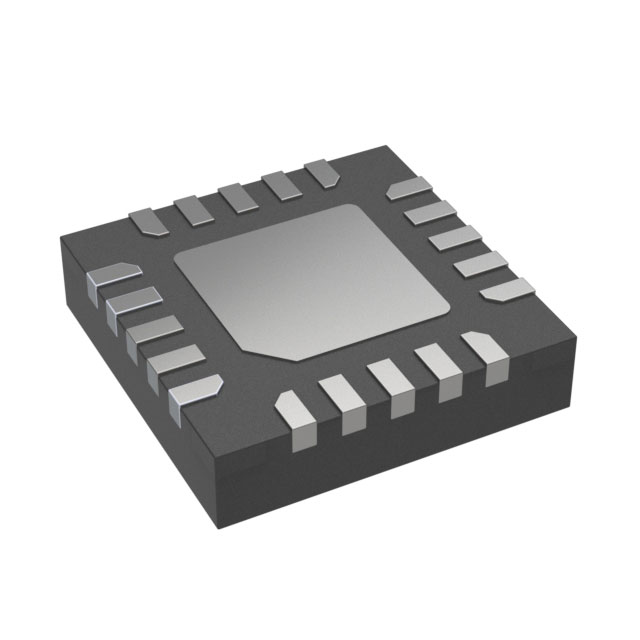

| Supplier Device Package | 20-QFN (3x3) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.94 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.80 | |||
| 80 | $ 0.65 | |||
| 230 | $ 0.61 | |||
| 490 | $ 0.54 | |||
| 980 | $ 0.50 | |||
Description
General part information
ML51XB9 Series
8051 NuMicro ML51 Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) FLASH 20-QFN (3x3)
