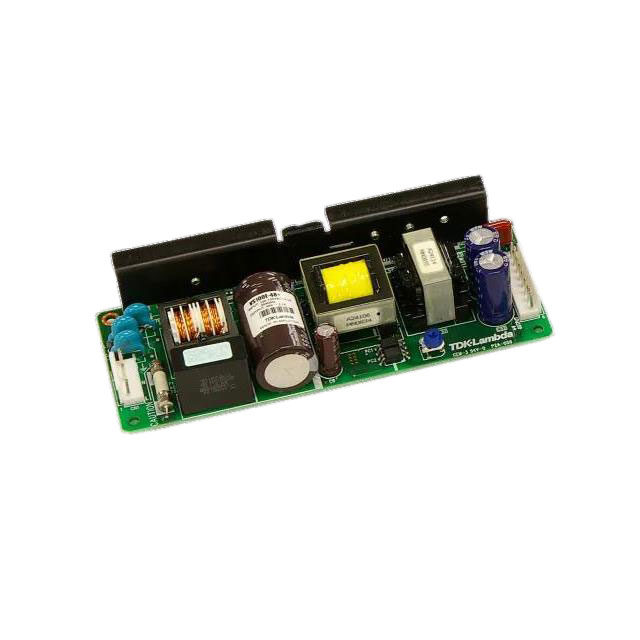

VS100E-15

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 105 W, 15 V, 7 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

VS100E-15

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 105 W, 15 V, 7 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VS100E-15

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	7 A
Current - Output 4	7 A
Current - Output 5	7 A
Current - Output 6	7 A
Efficiency	85 %
Features	Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	105 W
Size / Dimension [x]	6.1 in
Size / Dimension [x]	155 mm
Size / Dimension [y]	2.44 "
Size / Dimension [y]	62 mm
Size / Dimension [z]	1.14 "
Size / Dimension [z]	29 mm
Standard Number	60950-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	132 VAC, 175 VDC
Voltage - Input [Min]	85 VAC, 110 VDC
Voltage - Isolation	2000 V
Voltage - Output 1	15 V
Voltage - Output 2	15 V
Voltage - Output 3	15 V
Voltage - Output 4	15 V
Voltage - Output 5	15 V
Voltage - Output 6	15 V

VS150E Series

Switching Power Supplies AC-DC, 115VAC, Output 3.3V 20A, 66W

Part	Voltage - Output 3	Approval Agency	Voltage - Isolation	Current - Output 6	Voltage - Output 2	Mounting Type	Standard Number	Type	Current - Output 5	Voltage - Output 5	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Output 4	Efficiency	Current - Output 4	Voltage - Output 6	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Features	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Applications	Current - Output 1	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current - Output 3	Current - Output 2	Voltage - Output 5 [custom]
TDK-LAMBDA VS100E-15	15 V	CE cURus	2000 V	7 A	15 V	Chassis Mount	60950-1 62368-1	Open Frame	7 A	15 V	-10 °C	70 °C	15 V	15 V	85 %	7 A	15 V	85 VAC 110 VDC	132 VAC 175 VDC	105 W	Adjustable Output	6	2.44 "	62 mm	1.14 "	6.1 in	155 mm	29 mm	ITE (Commercial)	7 A
TDK-LAMBDA VS150E-24		CE cURus	2000 V			Chassis Mount		Enclosed					24 V		87 %			85 VAC	132 VAC	150 W		1	1.97 "	50 mm	1.14 "	6.1 in	154.9 mm	29 mm	ITE (Commercial)	6.3 A	-10 °C	158 °F
TDK-LAMBDA VS100E-48	48 V	CE cURus	2000 V	2.2 A	48 V	Chassis Mount	60950-1 62368-1	Open Frame	2.2 A	48 V	-10 °C	70 °C	48 V		87 %	2.2 A	48 V	85 VAC 110 VDC	132 VAC 175 VDC	106 W	Adjustable Output	6	2.44 "	62 mm	1.14 "	6.1 in	155 mm	29 mm	ITE (Commercial)	2.2 A			2.2 A	2.2 A
TDK-LAMBDA VS150E-5		CE cURus TUV	2500 V			Chassis Mount		Open Frame			-10 °C	70 °C	5 V		86 %			85 VAC	132 VAC	150 W	Adjustable Output DC Input Capable	1	2.95 in	75 mm	1.42 in	8.74 "	222 mm	36 mm	ITE (Commercial)	30 A
TDK-LAMBDA VS50E-5	5 V	CE cURus	2000 V	10 A	5 V	Chassis Mount	60950-1 62368-1	Open Frame	10 A	5 V	-10 °C	70 °C	5 V	5 V	85 %	10 A	5 V	85 VAC	132 VAC	50 W	Adjustable Output	6	1.97 "	50 mm	0.91 in	5.2 in	132 mm	23 mm	ITE (Commercial)	10 A				10 A
TDK-LAMBDA VS150E-3	3.3 V	CE cURus	2000 V	30 A	3.3 V	Chassis Mount	60950-1 62368-1	Open Frame	30 A	3.3 V	-10 °C	70 °C	3.3 V	3.3 V	80 %	30 A	3.3 V	85 VAC 110 VDC	132 VAC 175 VDC	99 W	Adjustable Output	6	2.95 in	75 mm	1.34 in	6.3 "	160 mm	34 mm	ITE (Commercial)	30 A			30 A	30 A
TDK-LAMBDA VS150E-15	15 V	CE cURus	2000 V	10 A	15 V	Chassis Mount	60950-1 62368-1	Open Frame	10 A	15 V	-10 °C	70 °C	15 V	15 V	87 %	10 A	15 V	85 VAC 110 VDC	132 VAC 175 VDC	150 W	Adjustable Output	6	2.95 in	75 mm	1.34 in	6.3 "	160 mm	34 mm	ITE (Commercial)	10 A				10 A
TDK-LAMBDA VS150E-48		CE cURus	2000 V			Chassis Mount		Enclosed					48 V		88 %			85 VAC	132 VAC	150 W		1	1.97 "	50 mm	1.14 "	6.1 in	154.9 mm	29 mm	ITE (Commercial)	3.2 A	-10 °C	158 °F
TDK-LAMBDA VS50E-24	24 V	CE cURus	2000 V	2.5 A	24 V	Chassis Mount	60950-1 62368-1	Open Frame	2.5 A		-10 °C	70 °C	24 V	24 V	85 %	2.5 A	24 V	85 VAC	132 VAC		Adjustable Output	6	1.97 "	50 mm	0.91 in	5.2 in	132 mm	23 mm	ITE (Commercial)	2.5 A			2.5 A		24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 135.38
		10	$ 120.83
		25	$ 109.67
		50	$ 98.59
Newark	Each	1	$ 135.38
		10	$ 120.83
		25	$ 109.67
		50	$ 98.59
Sager	N/A	1	$ 135.38
		10	$ 120.83
		25	$ 109.67
		50	$ 98.59

Description

General part information

VS150E Series

Switching Power Supplies AC-DC, 115VAC, Output 3.3V 20A, 66W
