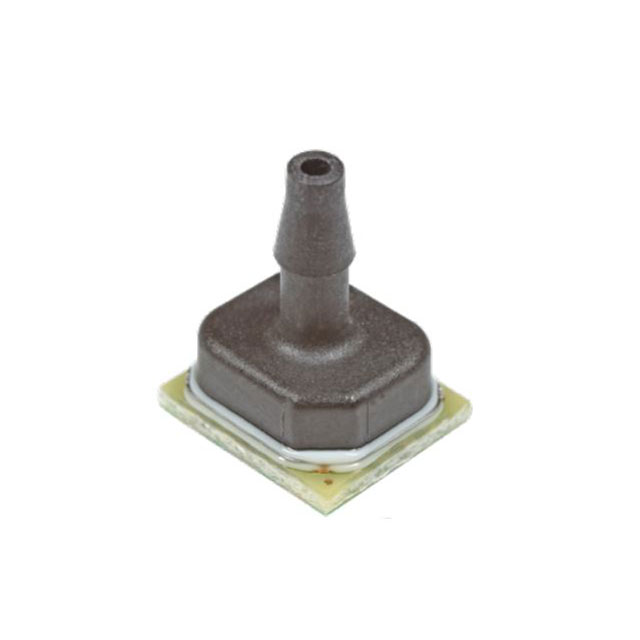

ABP2LANT010BG2A3XX

Active

Honeywell Sensing and Productivity Solutions

SENSOR 145PSIG 0.11" 14BIT 6SMT

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 145PSIG 0.11" 14BIT 6SMT

Technical Specifications

Parameters and characteristics for this part

Specification	ABP2LANT010BG2A3XX

Accuracy	0.25 %
Features	Temperature Compensated, Amplified Output
Maximum Pressure	232.06 PSI
Maximum Pressure	1600 kPa
Mounting Type	Surface Mount
Operating Pressure	10 bar
Operating Pressure	145.04 PSI
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Output	14 b
Output Type	I2C
Package / Case	No Lead, Top Port, 6-SMD
Port Size	0.11 ", 2.74 mm
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	6-SMT
Termination Style	SMD (SMT) Tab
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

Part	Maximum Pressure	Maximum Pressure	Port Style	Output Type	Operating Pressure	Operating Pressure	Supplier Device Package	Package / Case	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Output	Pressure Type	Port Size	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
Honeywell Sensing and Productivity Solutions ABP2LANT010BG2A3XX	232.06 PSI	1600 kPa	Barbed	I2C	10 bar	145.04 PSI	6-SMT	6-SMD No Lead Top Port	Amplified Output Temperature Compensated	-40 °C	110 °C	SMD (SMT) Tab	14 b	Vented Gauge	0.11 " 2.74 mm	0.25 %	3.6 V	1.8 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 145.04PSI (1000kPa) Vented Gauge Male - 0.11" (2.74mm) Tube 14 b 6-SMD, No Lead, Top Port
