1132-4003

Active

Amphenol SV Microwave

CONN ADAPT SMPM JACK TO SMA PLUG

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT SMPM JACK TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	1132-4003

Adapter Series	SMA to SMPM
Adapter Type	Plug to Jack
Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMPM Jack
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE), Polychlorotrifluoroethylene (PCTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Conversion Type	Mounting Type	Center Contact Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Style	Body Material	Fastening Type	Frequency - Max [Max]	Convert From (Adapter End)	Adapter Type	Center Gender	Center Contact Plating	Adapter Series	Convert To (Adapter End)	Impedance	Dielectric Material	Insertion Loss
Amphenol SV Microwave 1132-4021	Same Series	Free Hanging (In-Line)	Beryllium Copper	Gold	-55 °C	125 °C	Straight	Beryllium Copper	Snap-On	65 GHz	Female Socket SMPM Jack	Jack to Jack	Female to Female	Gold	SMPM to SMPM	Female Socket SMPM Jack	50 Ohms	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1132-4006	Same Series	Free Hanging (In-Line)	Beryllium Copper	Gold			Straight	Beryllium Copper	Snap-On	40 GHz	Female Socket SMPM Jack	Jack to Jack	Female to Female	Gold	SMPM to SMPM	Female Socket SMPM Jack	50 Ohms	Polytetrafluoroethylene (PTFE)	0.5 dB
Amphenol SV Microwave 1132-4003	Between Series	Free Hanging (In-Line)	Beryllium Copper	Gold; Passivated			Straight	Beryllium Copper Stainless Steel	Snap-On Threaded	18 GHz	Female Socket SMPM Jack	Plug to Jack		Gold	SMA to SMPM	Male Pin SMA Plug	50 Ohms	Polychlorotrifluoroethylene (PCTFE) Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1132-4010	Same Series	Free Hanging (In-Line)	Beryllium Copper	Gold			Straight	Beryllium Copper	Snap-On	40 GHz	Female Socket SMPM Jack	Jack to Jack	Female to Female	Gold	SMPM to SMPM	Female Socket SMPM Jack	50 Ohms	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 86.82

General part information

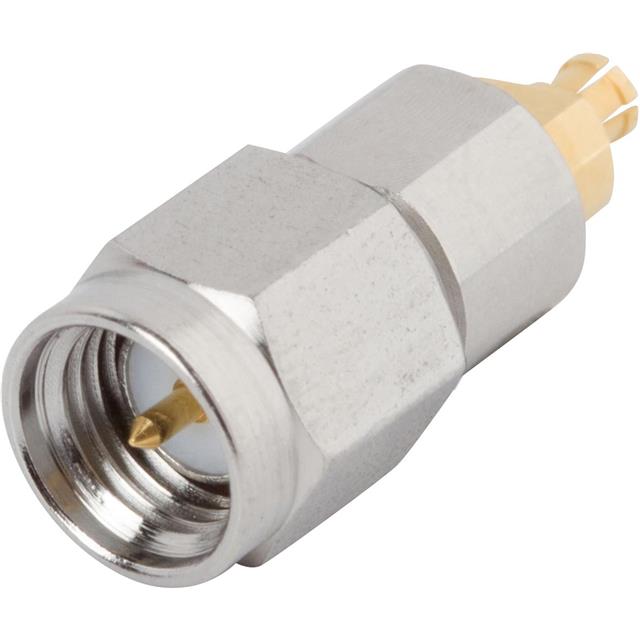

Adapter Coaxial Connector SMPM Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
