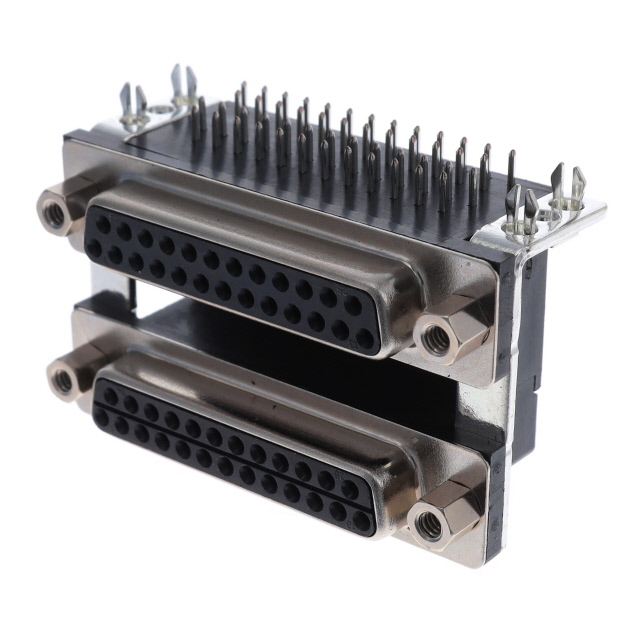

K42X-B25S/S-A4NJ

Active

Kycon, Inc.

D-SUB DUALPORT CONNECTORS 2PORT 25P RECPT/RECP .750 4GB JS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet G3LX-188S1-FF-GY1 +1

K42X-B25S/S-A4NJ

Active

Kycon, Inc.

D-SUB DUALPORT CONNECTORS 2PORT 25P RECPT/RECP .750 4GB JS

Deep-Dive with AI

DocumentsDatasheet G3LX-188S1-FF-GY1 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K42X-B25S/S-A4NJ

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder
Voltage Rating	30 VDC

K42X-B25 Series

D-Sub Dualport Connectors 2PORT 25P RECPT/RECP .750 4GB JS

Part	Contact Finish	Backset Spacing	Backset Spacing	Material Flammability Rating	Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Color	Current Rating (Amps)	Voltage Rating	Mounting Type	Flange Feature	Shell Size, Connector Layout	Contact Type	Shell Material, Finish	Number of Positions	Connector Style	Number of Rows	Contact Material	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish Thickness
Kycon, Inc. K42X-B25P/S-A4N30	Gold	8.08 mm	0.318 "	UL94 V-0	Solder	Board Lock Grounding Indents Mounting Brackets	0.76 Ám	30 Áin	Black	1.2 A	30 VDC	Through Hole Right Angle	Housing/Shell (4-40)	3 (DB B)	Signal	Nickel Plated Steel	25	D-Sub - Stacked	2	Brass Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Plug Male Pins Receptacle Female Sockets
Kycon, Inc. K42X-B25S/S-A4N30	Gold	8.08 mm	0.318 "	UL94 V-0	Solder	Board Lock Mounting Brackets	0.76 Ám	30 Áin	Black	1.2 A	30 VDC	Through Hole Right Angle	Housing/Shell (4-40)	3 (DB B)	Signal	Nickel Plated Steel	25	D-Sub - Stacked	2	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Receptacle Female Sockets
Kycon, Inc. K42X-B25P/S-A4N	Gold	8.08 mm	0.318 "	UL94 V-0	Solder	Board Lock Grounding Indents Mounting Brackets			Black	1.2 A	30 VDC	Through Hole Right Angle	Housing/Shell (4-40)	3 (DB B)	Signal	Nickel Plated Steel	25	D-Sub - Stacked	2	Brass Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Plug Male Pins Receptacle Female Sockets	Flash
Kycon, Inc. K42X-B25S/S-A4NJ	Gold	8.08 mm	0.318 "	UL94 V-0	Solder	Board Lock Mounting Brackets			Black	2 A	30 VDC	Through Hole Right Angle	Female Screwlock (4-40) Mating Side	3 (DB B)	Signal	Nickel Plated Steel	25	D-Sub - Stacked	2	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Receptacle Female Sockets	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.93
		15	$ 12.33
		30	$ 11.74
		60	$ 11.18
		105	$ 10.75
		255	$ 10.10
		510	$ 9.61
		1005	$ 9.17
Sager	N/A	180	$ 8.73
