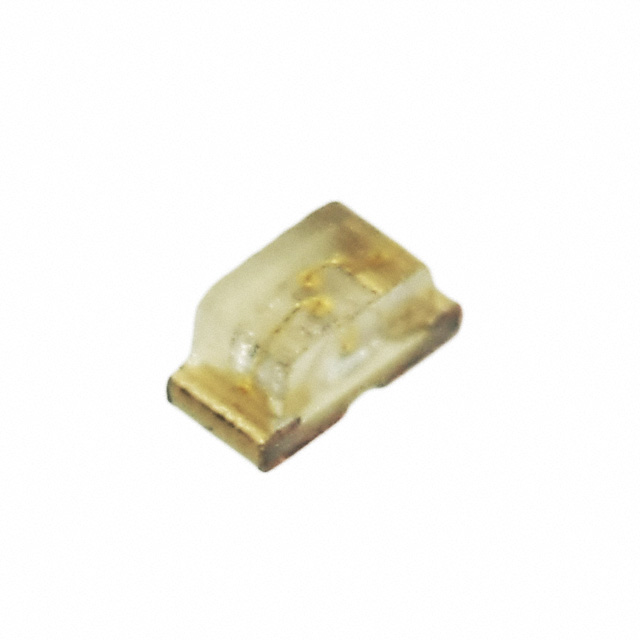

APHHS1005VGC/A

Obsolete

Kingbright

LED GREEN CLEAR CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APHHS1005VGC/A

Obsolete

Kingbright

LED GREEN CLEAR CHIP SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APHHS1005VGC/A

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	0.6 mm
Lens Color	Colorless
Lens Size [x]	0.8 mm
Lens Size [y]	0.5 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	180 mcd
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Size / Dimension [x]	1 mm
Size / Dimension [y]	0.5 mm
Supplier Device Package	Chip LED
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant	525 nm
Wavelength - Peak	520 nm

APHHS1005 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Lens Transparency	Color	Configuration	Supplier Device Package	Package / Case	Lens Color	Millicandela Rating	Lens Style	Mounting Type	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Wavelength - Peak	Height (Max) [Max]	Viewing Angle	Current - Test	Height (Max) [Max] [z]
Kingbright APHHS1005PBC/A	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear	Blue	Standard	Chip LED	0402 (1005 Metric)	Colorless	60 mcd	Rectangle with Flat Top	Surface Mount	3.2 V	470 nm	468 nm	0.6 mm	120 °	20 mA
Kingbright APHHS1005ZGCK	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear	Green	Standard	Chip LED	0402 (1005 Metric)	Colorless	400 mcd	Rectangle with Flat Top	Surface Mount	3.3 V	525 nm	515 nm		120 °	20 mA	0.5 mm
Kingbright APHHS1005LCGCK	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear	Green	Independent	2-SMD	0402 (1005 Metric)	Colorless	3.5 mcd	Rectangle with Flat Top	Surface Mount	1.9 V	570 nm		0.6 mm	120 °	2 mA
Kingbright APHHS1005QBC/D	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear	Blue	Standard	Chip LED	0402 (1005 Metric)	Colorless	60 mcd	Rectangle with Flat Top	Surface Mount	3.3 V	465 nm	460 nm	0.6 mm	140 °	20 mA
Kingbright APHHS1005SECK	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear		Standard	Chip LED	0402 (1005 Metric)	Colorless	150 mcd	Rectangle with Flat Top	Surface Mount	2.1 V	601 nm	610 nm	0.6 mm	120 °	20 mA
Kingbright APHHS1005VGC/A	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear	Green	Standard	Chip LED	0402 (1005 Metric)	Colorless	180 mcd	Rectangle with Flat Top	Surface Mount	3.2 V	525 nm	520 nm	0.6 mm	120 °	20 mA
Kingbright APHHS1005ZGC	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear	Green	Standard	Chip LED	0402 (1005 Metric)	Colorless	450 mcd	Rectangle with Flat Top	Surface Mount	3.3 V	525 nm	515 nm		120 °	20 mA	0.5 mm
Kingbright APHHS1005LSECK/J4-PF	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear		Independent	2-SMD	0402 (1005 Metric)	Colorless	100 mcd	Rectangle with Flat Top	Surface Mount	1.8 V	605 nm	611 nm	0.6 mm	120 °	2 mA
Kingbright APHHS1005SURCK	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear	Red	Standard	Chip LED	0402 (1005 Metric)	Colorless	70 mcd	Rectangle with Flat Top	Surface Mount	1.95 V	630 nm	645 nm	0.6 mm	120 °	20 mA
Kingbright APHHS1005LSYCK/J3-PF	1 mm	0.5 mm	0.5 mm	0.8 mm	Clear	Yellow	Independent	2-SMD	0402 (1005 Metric)	Colorless	20 mcd	Rectangle with Flat Top	Surface Mount	1.85 V	590 nm	590 nm	0.6 mm	120 °	2 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APHHS1005 Series

Green 525nm LED Indication - Discrete 3.2V 0402 (1005 Metric)
