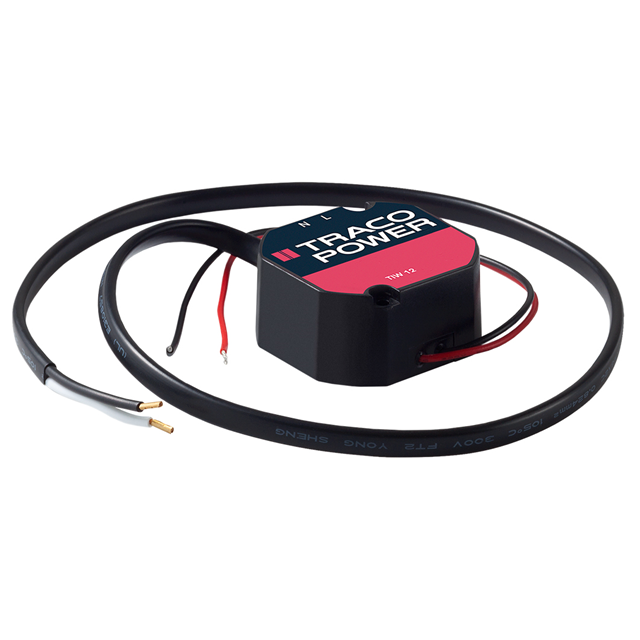

TIW 12-112

Active

Traco Power

AC/DC CONVERTER 12V 12W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 12V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	TIW 12-112

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, CE, cCSAus
Current - Output 1	1 A
Efficiency	80 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	12 W
Size / Dimension [x]	55 mm
Size / Dimension [x]	2.17 "
Size / Dimension [y]	0.93 "
Size / Dimension [y]	23.6 mm
Size / Dimension [z]	1.89 "
Size / Dimension [z]	48 mm
Type	Enclosed
Voltage - Input [Max]	375 VDC, 264 VAC
Voltage - Input [Min]	130 VDC, 90 VAC
Voltage - Output 1	12 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Mounting Type	Voltage - Output 1	Number of Outputs	Current - Output 1
Traco Power TIW 12-112	264 VAC 375 VDC	90 VAC 130 VDC	80 %	50 °C	-25 °C	Household Appliances ITE (Commercial)	12 W	CB cCSAus CE	1.89 "	0.93 "	55 mm	48 mm	2.17 "	23.6 mm	Enclosed	Chassis Mount	12 V	1	1 A
Traco Power TIW 12-124	264 VAC 375 VDC	90 VAC 130 VDC	80 %	50 °C	-25 °C	Household Appliances ITE (Commercial)	12 W	CB cCSAus CE	1.89 "	0.93 "	55 mm	48 mm	2.17 "	23.6 mm	Enclosed	Chassis Mount	24 V	1	500 mA
